Запчасти Case IH JX65 (1.92.0[10]) - CAB - HANDBRAKE CONTROL, CASING AND CABLE (10) - OPERATORS PLATFORM/CAB

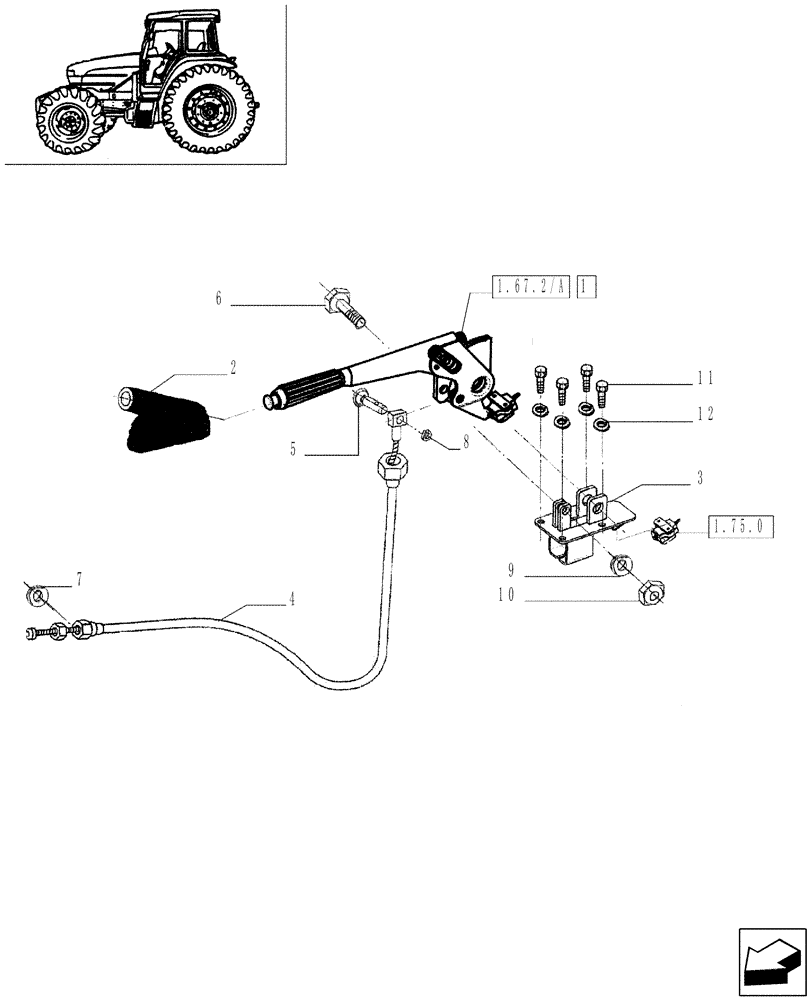

Схема запчастей Case IH JX65 - (1.92.0[10]) - CAB - HANDBRAKE CONTROL, CASING AND CABLE (10) - OPERATORS PLATFORM/CAB
1.67.2/a
1
5
9
8
10
2
3
1.75.0
11
6
4
12
7

Артикул

Название

Примечание

Количество

1

5089160

HAND BRAKE

Assy

1шт.

2

5089467

BOOT

1шт.

3

5093341

SUPPORT

1шт.

4

5089098

CABLE

1295 mm, Serial Range: -C6222

1шт.

2WD, Without Transmission Handbrake

1шт.

4

5098459

CABLE

1305 mm, Start Serial: D6222

1шт.

4WD, Witout Transmission Handbrake

1шт.

4

5094770

CABLE,1335mm L

1335 mm

1шт.

2WD, With Transmission Handbrake

1шт.

4

5091641

CABLE,1360mm L

1360 mm

1шт.

4WD, With Transmission Handbrake

1шт.

5

5122167

PIN,10mm OD x 24.6mm L

D=10

1шт.

6

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

7

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

8

11065976

CIRCLIP,M10, Ext

1шт.

9

10569474

LOCK WASHER,10.2mm ID x 16mm ID x 2.5mm Thk

M10

1шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

Выбрано товаров: 19
