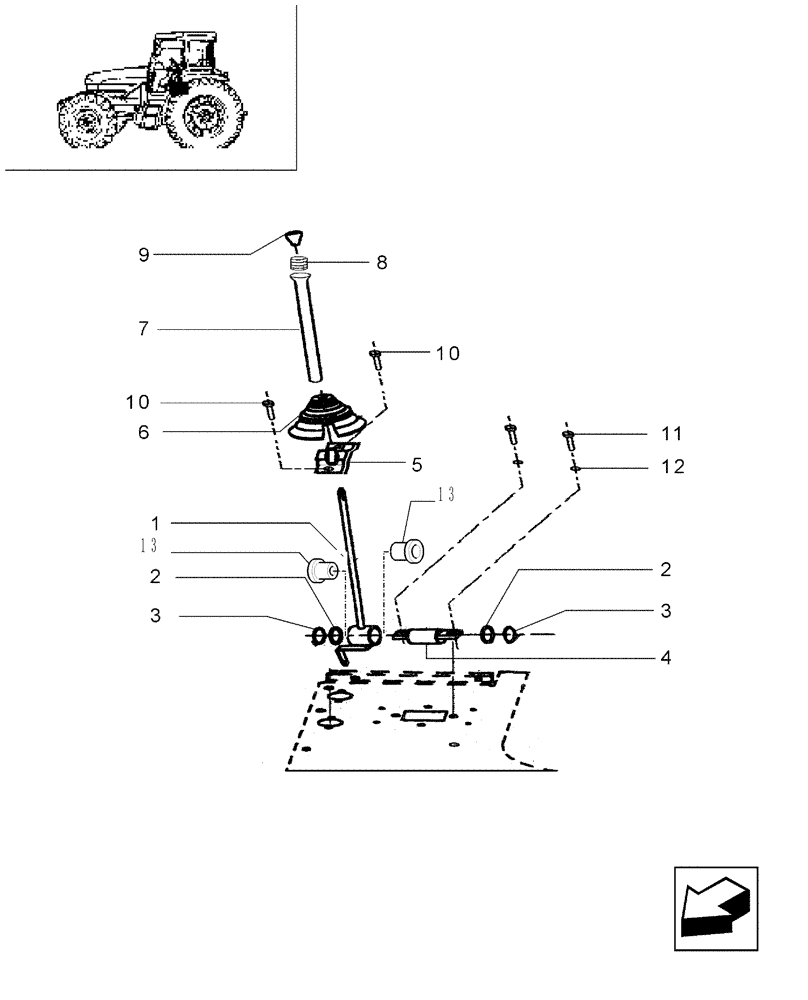

Запчасти Case IH JX65 (1.92.0[06]) - CAB - REVERSER CONTROL - LEVER, COVERING, HANDGRIP AND CASING (10) - OPERATORS PLATFORM/CAB

1

87392792

LEVER

Inverser, Incl. 13

1шт.

2

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

3

11066976

SNAP RING,M21, Ext

2шт.

4

5133375

PIN,20mm OD x 100mm L

1шт.

5

5089690

PLATE

1шт.

6

5089691

BOOT

1шт.

7

5091607

LEVER

Inv. Control Arm Lock Pipe Comp.

1шт.

8

5091608

SPRING

1шт.

9

5091604

KNOB

1шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

11

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

10569379

LOCK WASHER

M8

2шт.

13

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.
