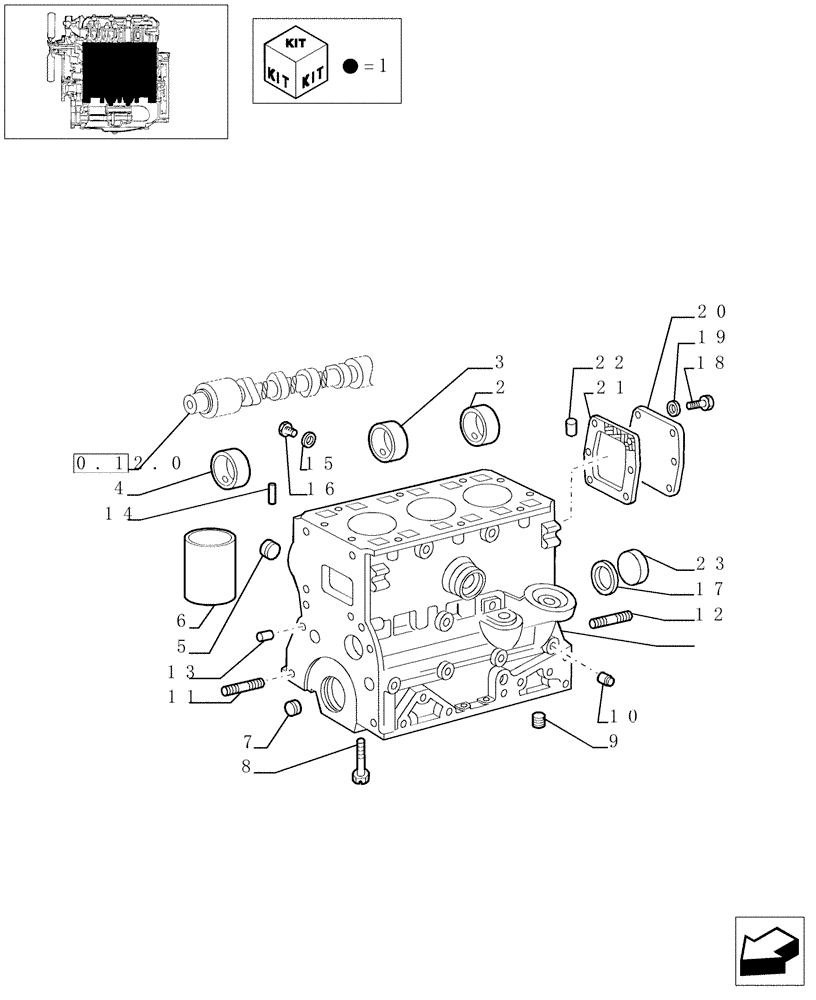

Запчасти Case IH JX65 (0.04.0/01[01]) - CRANKCASE AND CYLINDERS (BEFORE S/N 13286) (01) - ENGINE

1

98445212

CYLINDER BLOCK,3 Cylinders

1шт.

2

4603451

BUSHING

1шт.

3

4603450

BUSHING

1шт.

4

4603449

BUSHING

1шт.

5

14282770

PLUG,M36, Tapered, Stainless

3шт.

6

4770623

LINER, ENGINE CYLIND

+0.0

3шт.

6

4770624

LINER, ENGINE CYLIND

+0.2

3шт.

7

14328501

PLUG,M16, Tapered

5шт.

8

4792169

BOLT,Hex, M14 x 1.5 x 115mm

M14 x 1.5 x 137

8шт.

9

99434268

PLUG

M16 x 1.5

1шт.

10

99434231

PLUG

M10 x 1.25

4шт.

11

13517821

STUD,M8 x 1.25 x 60mm, Cl 8.8

M8 x 60

1шт.

12

16735724

STUD

M14 x 20 x 55

1шт.

13

10839610

DOWEL,M8 x 12mm

D=8 mm

2шт.

14

14165470

LOCK PIN,M5 x 10, Slotted

D=5 mm

1шт.

15

10265460

SEAL

D=49 x 42 x 1.5

1шт.

15

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

16

4665029

PLUG

M42 x 1.5

1шт.

16

98415314

PLUG

M22 x 1.5

1шт.

17

17284481

GASKET

D=58.4 x 2.6 mm

1шт.

18

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

6шт.

20

4653282

COVER

1шт.

21

99445564

GASKET

1шт.

22

4846850

DOWEL,M9 x 12mm

1шт.

23

98412737

PLUG,55mm ID x 63.93mm OD x 8mm Thk, w/O-Ring

M63

1шт.
