Запчасти Case IH JX65 (1.82.7/03) - (VAR.413) 2 CONTROL VALVES (1 S/D + 1 DOUBLE ACTING W/FLOAT W/KICK OUT) (07) - HYDRAULIC SYSTEM

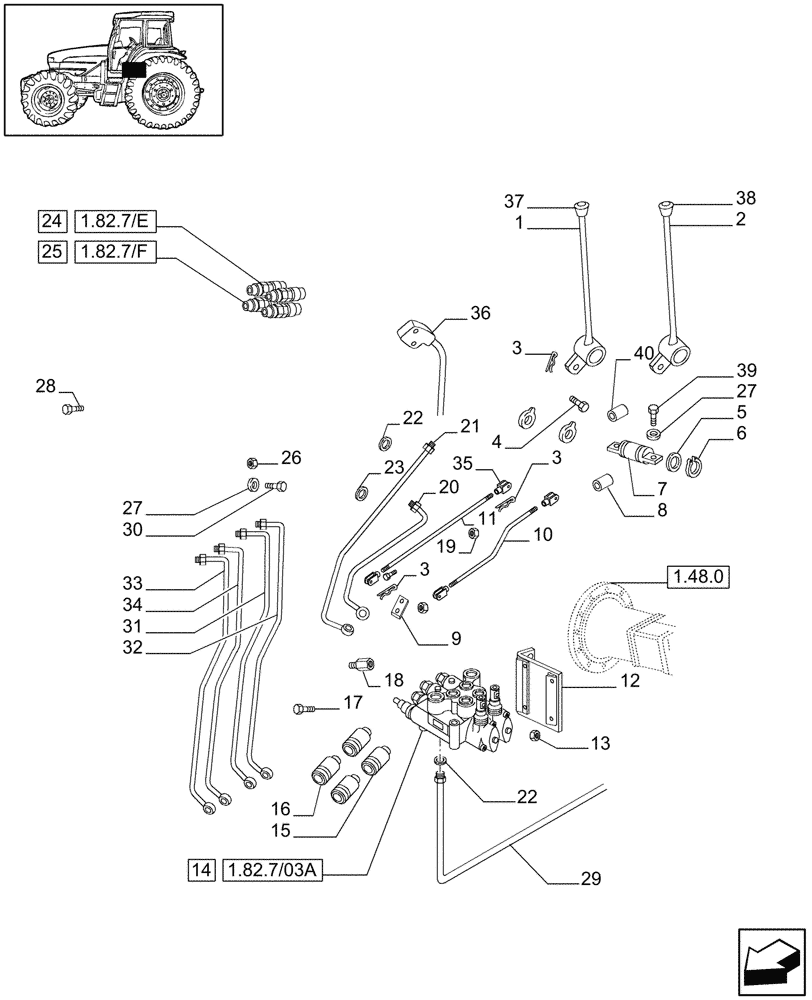

Схема запчастей Case IH JX65 - (1.82.7/03) - (VAR.413) 2 CONTROL VALVES (1 S/D + 1 DOUBLE ACTING W/FLOAT W/KICK OUT) (07) - HYDRAULIC SYSTEM
1.82.7/f
2
7
4
3
3
12
22
18
27
3
21
35
28
27
26
13
6
17
29
24
8
16
33
38
34
19
5
30
23
39
10
22
37
20
25
32
1
31
9
11
40
14
36
15
1.48.0
1.82.7/e
1.82.7/03a

Артикул

Название

Примечание

Количество

1

5093963

LEVER

1шт.

2

5093964

LEVER

DW15 x 34

1шт.

3

10734401

COTTER PIN,M2 x 22

4шт.

4

5089126

PIN,12mm OD x 89mm L

4шт.

5

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

4шт.

6

11066976

SNAP RING,M21, Ext

2шт.

7

5133375

PIN,20mm OD x 100mm L

1шт.

8

5091106

BUSHING,27mm ID x 38mm OD x 14mm L

1шт.

9

5089075

EYEBOLT,M8

2шт.

10

5093831

ROD

1шт.

11

5093830

ROD

1шт.

12

5092077

SUPPORT

1шт.

13

15896211

NUT,M6, Cl 8

4шт.

14

5095110

HYDRAULIC VALVE

1шт.

15

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

2шт.

16

5092079

SPACER,M18 x 1.5 NPT x M18 x 1.5

2шт.

17

5100984

BANJO BOLT,M18 x 1.5, 34mm L

7шт.

18

5087002

HYD CONNECTOR

1шт.

19

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

20

5095103

PIPE

1шт.

21

5092061

BRAKE LINE

1шт.

22

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

19шт.

23

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

24

5092198

COUPLING, QUICK, FEM,Light Blue

Light Blue

2шт.

25

5091860

COUPLING, QUICK, FEM,Green

Green

2шт.

26

5129168

BHD LOCK NUT,M24 x 1.5

4шт.

27

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

28

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

29

5092045

TUBE

1шт.

30

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

31

5094324

TUBE

Quick Coupling, Fourth, 364.5 mm L

1шт.

32

5094320

TUBE

Quick Coupling, Third, 419 mm L

1шт.

33

5092067

TUBE

Quick Coupling, Second, 415 mm L

1шт.

34

5092065

TUBE

Quick Coupling, First, 449 mm L

1шт.

35

5089026

SUPPORT

4шт.

36

5128343

RIGID TUBE

1шт.

37

5091856

KNOB

Green

1шт.

38

5091857

KNOB

Blue

1шт.

39

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

40

5090174

GUIDE BUSHING,27mm ID x 38mm OD x 14mm L

2шт.

Выбрано товаров: 40
