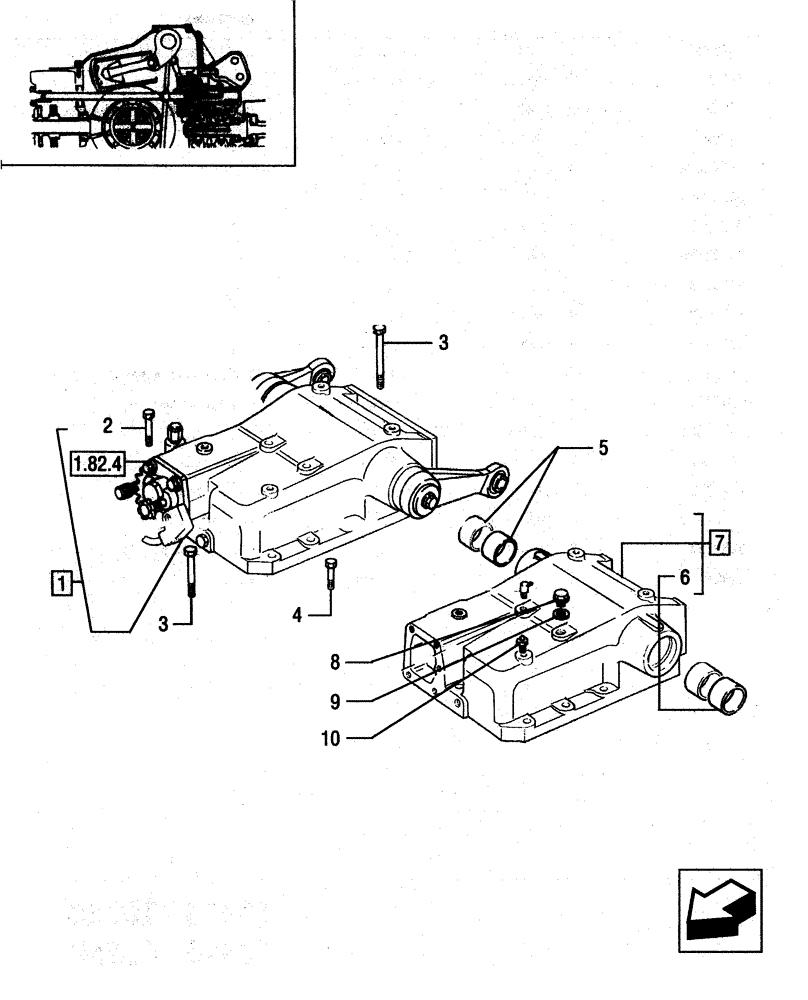

Запчасти Case IH JX65 (1.82.0) - LIFT BOXES AND COVERS (07) - HYDRAULIC SYSTEM

1

5121534

HYDRAULIC LIFT

1шт.

2

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

7шт.

3

15541521

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

3шт.

4

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

5

5186406

BUSHING,55.1mm ID x 60.03mm OD x 40mm L

RH

2шт.

6

5186405

BUSHING,62.8mm ID x 68.03mm OD x 40mm L

LH

2шт.

7

5131997

HOUSING

1шт.

8

10305171

PLUG,M22 x 1.5 x 21

1шт.

9

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

10

14324114

PLUG,M12 x 1.5

1шт.
