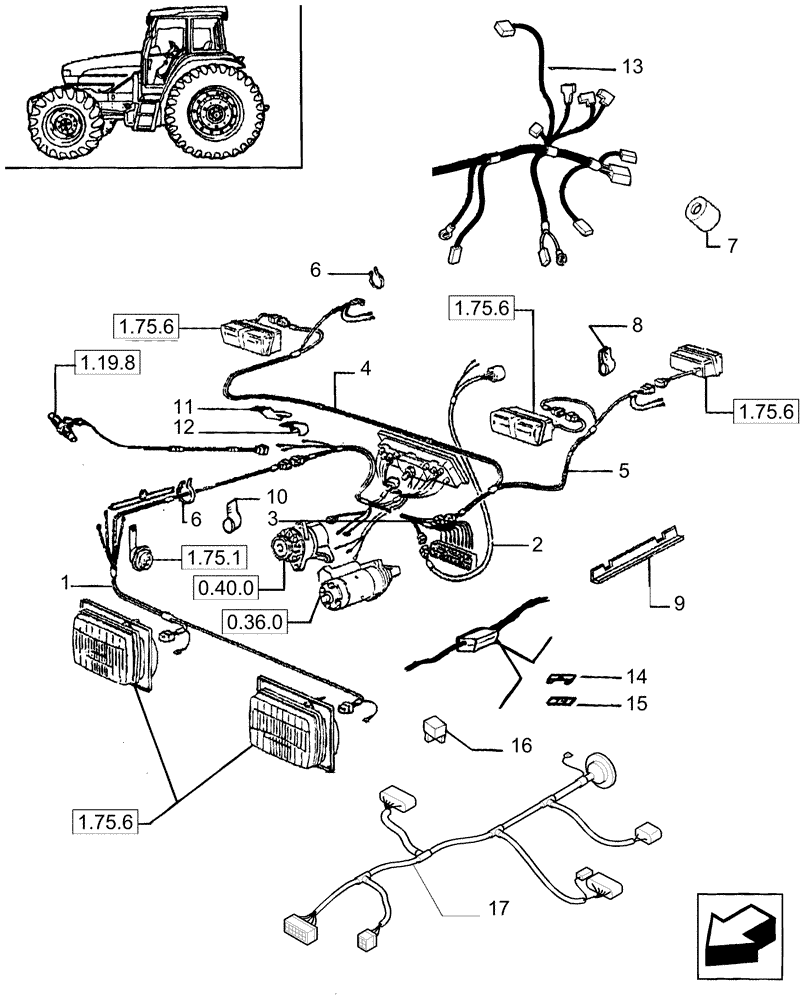

Запчасти Case IH JX65 (1.75.4/02) - (VAR.007) NORTH AMERICA VERSION - VARIOUS WIRES (06) - ELECTRICAL SYSTEMS

1

5092140

WIRE HARNESS

Head Lamp

1шт.

2

5092141

WIRE HARNESS

Chassis/Transmission

1шт.

3

5092139

WIRE HARNESS

Main/Fusebox W/Cab

1шт.

3

5092145

WIRE HARNESS

Instrument L/Cab

1шт.

3

5092350

WIRE HARNESS

Main/Fusebox L/Cab

1шт.

3

5092351

WIRE HARNESS

Instrument W/Cab

1шт.

4

5092143

ELECTRIC CABLE

RH

1шт.

5

5092144

WIRE HARNESS

LH

1шт.

6

5112712

COLLAR,M4.8 x 283

10шт.

7

5093911

GROMMET

2шт.

8

5085041

COLLAR

1шт.

9

5093288

COVER

Cable Protection (RH & LH)

2шт.

10

5088304

CLAMP

8шт.

11

5121360

LOCKING PLATE

1шт.

12

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1-14

1шт.

13

5094101

WIRE HARNESS

Cab

1шт.

14

5080122

FUSE,40A, Strip

40 Amp

1шт.

15

5080123

FUSE

80 Amp

1шт.

16

5080366

RELAY,12V, 30A

4шт.

17

87492086

WIRE HARNESS

Chassis

1шт.
