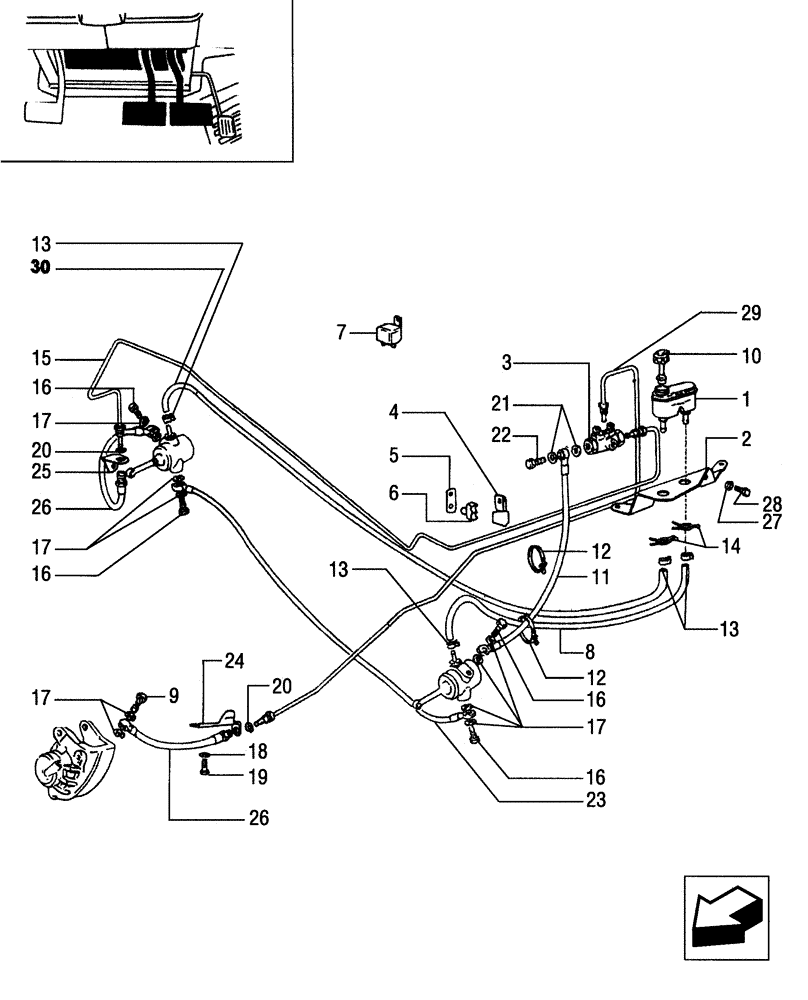

Запчасти Case IH JX65 (1.68.5) - (VAR.108) 12+12 (40 KM/H) SYNCRO SHUTTLE W/VENTRAL FRONT BRAKE AND LIMITED SLIP - TANK AND PIPES (05) - REAR AXLE

1

5141671

RESERVOIR

1шт.

2

5094174

SUPPORT

2шт.

3

87748285

MASTER CYLINDER

Synchronizing

1шт.

4

5152156

RETAINER COLLAR

1шт.

5

5152153

RETAINER COLLAR

1шт.

6

14575380

CLIP,4.8mm ID

1шт.

7

5168572

RELAY

1шт.

8

5094322

TUBE,5.00 mm ID x 1050.00 mm

1шт.

9

5143514

BANJO BOLT

1шт.

10

5105873

DIPSTICK

1шт.

11

5152159

HYDRAULIC HOSE,4.75mm ID x 440mm L

1шт.

12

14560087

CABLE TIE,103mm, Black

CABLE STRAP

2шт.

13

10175990

HOSE CLIP,9mm - 11mm

6шт.

14

84187457

WIRE

4шт.

15

5152168

BRAKE LINE

1шт.

16

5103908

BANJO BOLT,M10 x 1.25 x 23mm

4шт.

17

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

8шт.

18

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

1шт.

19

15854424

BOLT,Hex, M16 x 1.5 x 18mm, Cl 8.8, Full Thd

1шт.

20

13397776

SNAP RING,M16, Int

3шт.

21

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12 x 17 x 1.5

2шт.

22

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

23

5152160

HYDRAULIC HOSE

1шт.

24

5152152

BRACKET

1шт.

25

5152155

RETAINER COLLAR

1шт.

26

5119381

FLEXIBLE HOSE

1шт.

27

10516674

LOCK WASHER,M8

1шт.

28

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

29

5152170

TUBE

1шт.

30

5094323

TUBE,5.00 mm ID x 1350.00 mm

1шт.
