Запчасти Case IH JX65 (1.33.0) - TRANSMISSION BOXES AND COVERS (04) - FRONT AXLE & STEERING

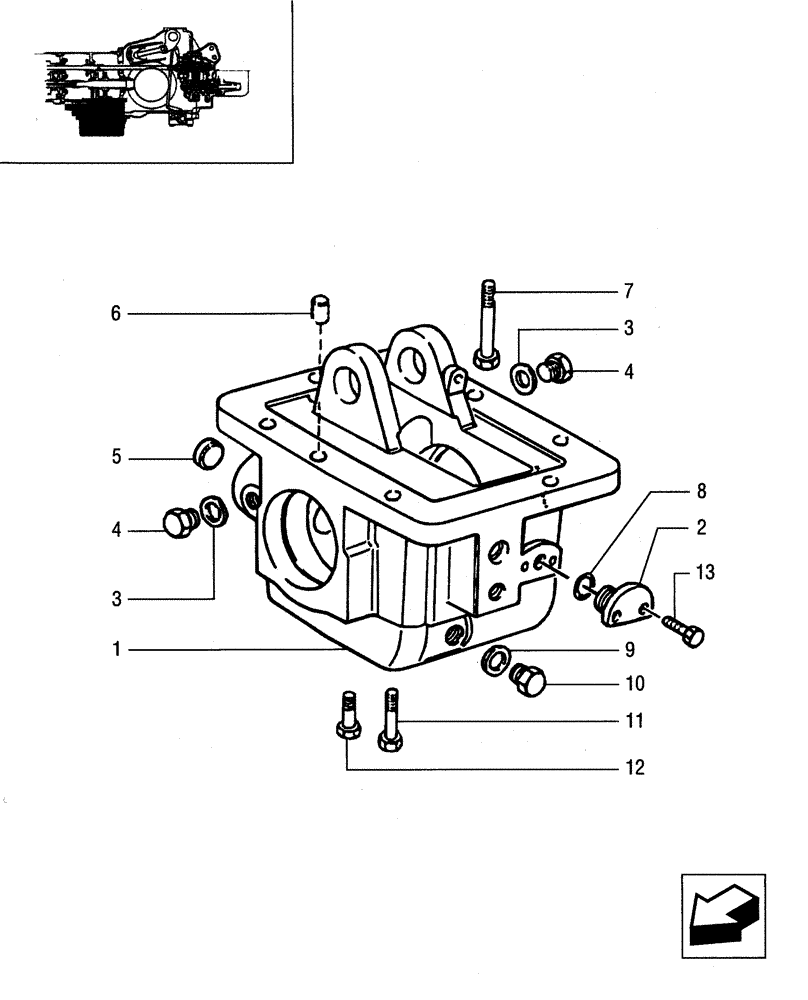

Схема запчастей Case IH JX65 - (1.33.0) - TRANSMISSION BOXES AND COVERS (04) - FRONT AXLE & STEERING
10
12
11
4
13
8
6
1
5
9
4
7
2
3
3

Артикул

Название

Примечание

Количество

1

5091160

TRANSFER UNIT

1шт.

2

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

3шт.

4

11903274

PLUG

3шт.

5

14329001

PLUG,M28, Tapered

1шт.

6

10839810

DOWEL,12mm OD x 18mm L

2шт.

7

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

9

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

10

10305171

PLUG,M22 x 1.5 x 21

1шт.

11

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

12

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

13

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

Выбрано товаров: 13
