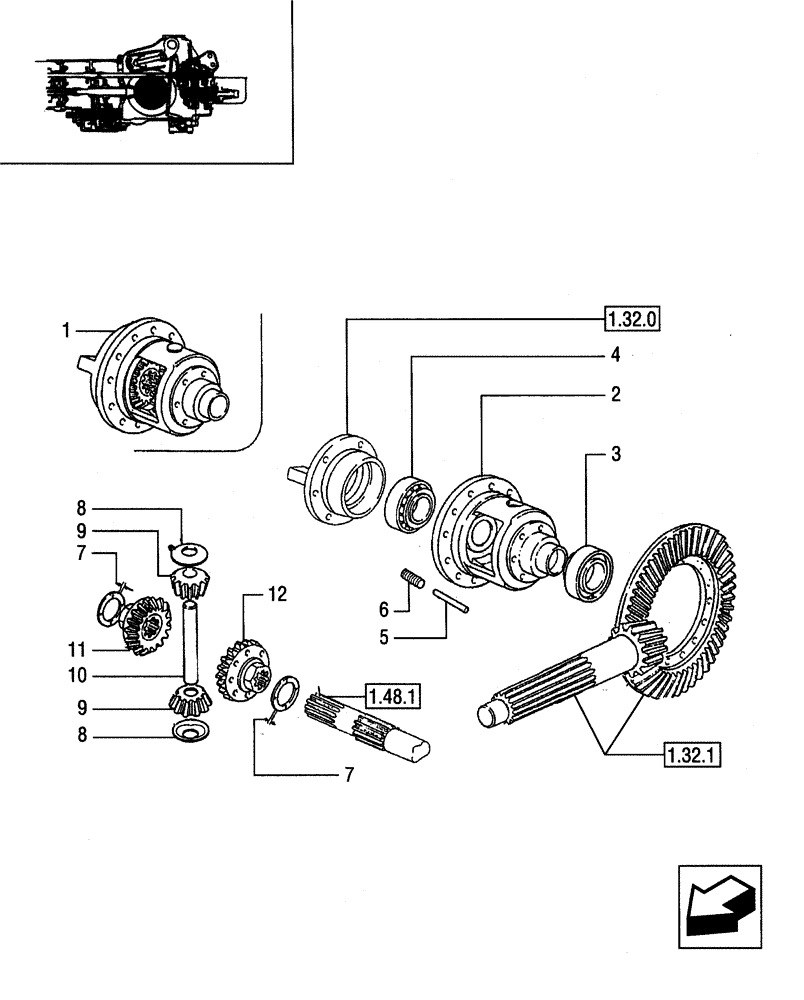

Запчасти Case IH JX65 (1.32.4[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION

1

5106314

DIFF CARRIER & GEARS

1шт.

2

5174825

HOUSING

1шт.

3

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

1шт.

4

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

1шт.

5

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

5088328

SHIM,44.18mm ID x 66mm OD x 1.2mm Thk

1шт.

7

5088329

SHIM,44.18mm ID x 66mm OD x 1.3mm Thk

1шт.

7

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

7

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

7

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

7

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

7

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

7

5088603

SHIM,1.9mm Thk

1шт.

7

5088604

SHIM,44.18mm ID x 66mm OD x 2mm Thk

1шт.

7

5087991

SHIM,2.1mm Thk

1шт.

7

5087992

SHIM,2.2mm Thk

1шт.

7

5087993

SHIM,2.3mm Thk

1шт.

7

5087994

SHIM,2.4mm Thk

1шт.

7

5087995

SHIM,2.5mm Thk

1шт.

8

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

9

5103870

PINION,24mm ID, 13T

2шт.

10

5148935

PIN,24mm OD x 144mm L

1шт.

11

5103869

PLANETARY GEAR,12/22T

1шт.

12

5103868

PINION,12/22T

1шт.
