Запчасти Case IH JX65 (1.32.1[03]) - CENTRAL REDUCTION GEARS - BEVEL GEAR PAIR AND GEAR (03) - TRANSMISSION

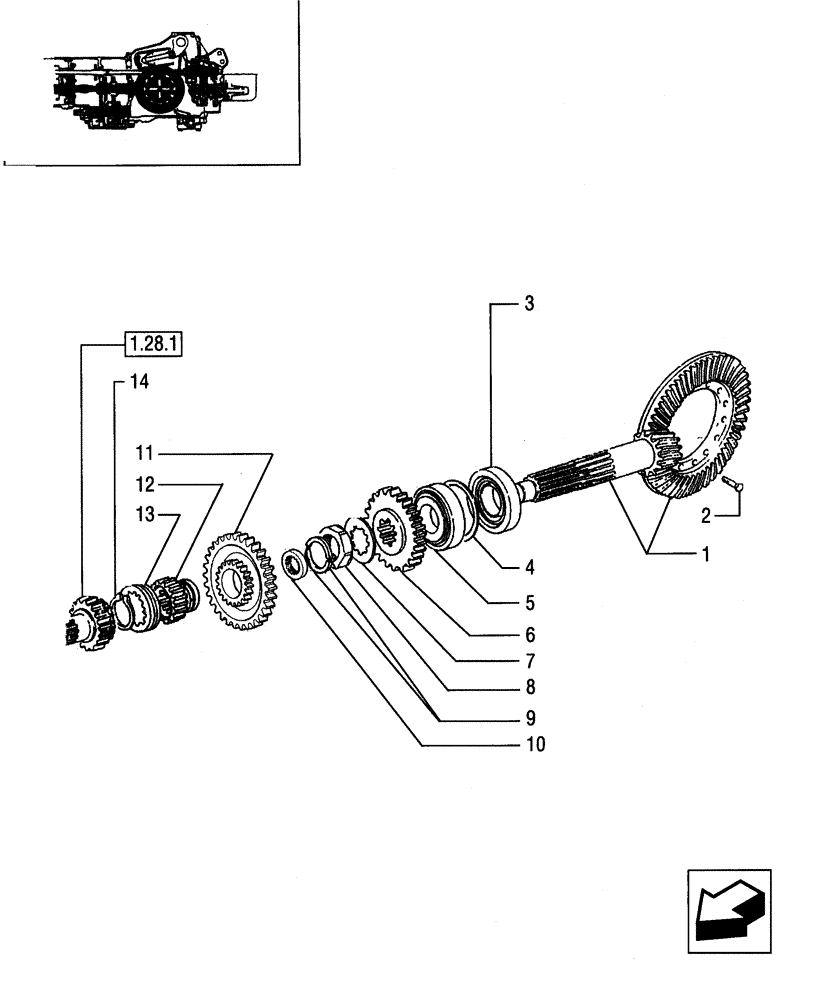

Схема запчастей Case IH JX65 - (1.32.1[03]) - CENTRAL REDUCTION GEARS - BEVEL GEAR PAIR AND GEAR (03) - TRANSMISSION
10
6
2
7
3
1
9
4
11
8
5
12
1.28.1
13
14

Артикул

Название

Примечание

Количество

1

5153715

BEVEL GEAR

(9/43), Ring & Pinion, JX75 - JX85

1шт.

1

87494036

BEVEL GEAR

(9/43), Ring & Pinion, JX55 - JX65

1шт.

Valid also for VAR.116

1шт.

2

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

JX55 - JX65

8шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

JX75 - JX85

12шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

1шт.

4

5086493

SHIM KIT

1шт.

5

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

6

5125005

DRIVEN GEAR

1шт.

7

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

8

5117744

NUT

1шт.

9

5127762

HALF-RING

2шт.

10

5128016

SPACER,10T

1шт.

11

5125007

DRIVEN GEAR

1шт.

12

5125009

SPLINED COUPLING,10T Internal / 23T External

1шт.

13

5125010

SLEEVE,23T

1шт.

14

11068976

SNAP RING,M42, Ext

1шт.

Выбрано товаров: 17
