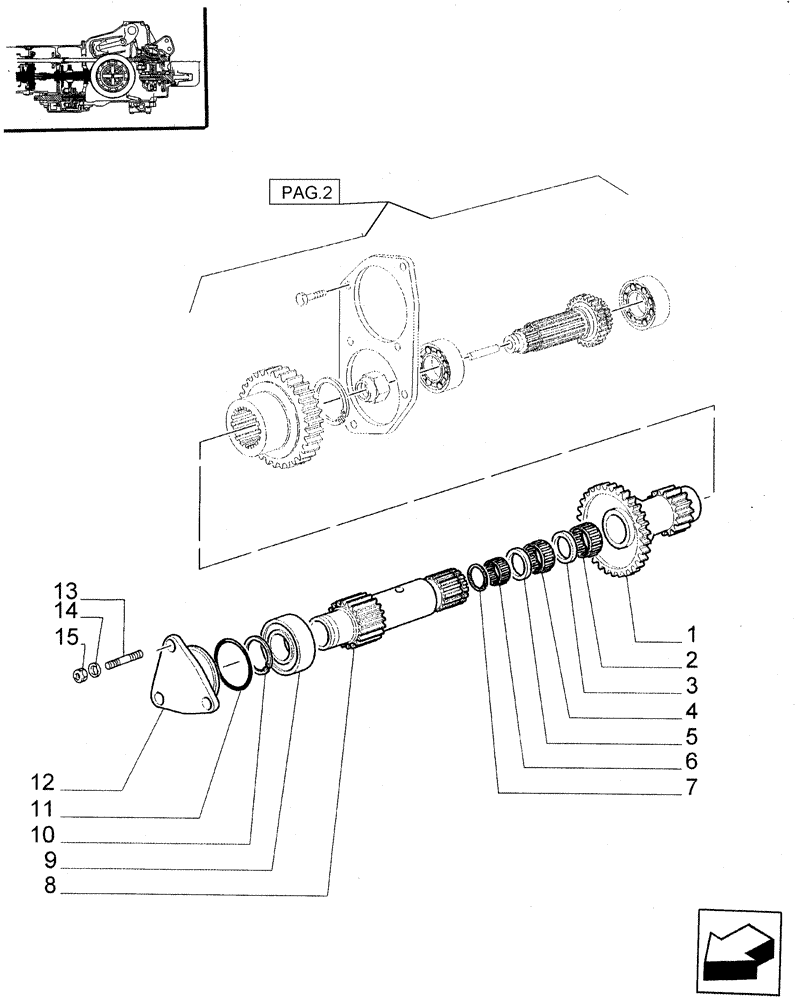

Запчасти Case IH JX65 (1.28.1/02[03]) - (VAR.113) GEARBOX - 20+12 SYNCHRO SHUTTLE+CREÈPER - SHAFT AND GEARS (03) - TRANSMISSION

1

5160669

DRIVEN GEAR

1шт.

2

5131694

NEEDLE BEARING CAGE,55mm ID x 62mm OD x 18mm W

2шт.

3

5131691

WASHER,55.1mm ID x 75mm OD x 7mm Thk

1шт.

4

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

4шт.

5

5141500

RING,28.2mm ID x 34.5mm OD x 1mm Thk

1шт.

6

5107311

NEEDLE BEARING,28mm ID x 35mm OD x 27mm W

1шт.

7

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

1шт.

8

5160667

DRIVEN GEAR

1шт.

9

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

10

11068876

SNAP RING,M40, Ext

1шт.

11

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

12

5161822

COVER

1шт.

12

13517120

STUD

3шт.

13

10516674

LOCK WASHER,M8

3шт.

14

16100821

NUT,M8, Cl 10

3шт.
