Запчасти Case IH JX65 (1.28.1[05]) - GEARBOX GEARINGS - DRIVING GEARS AND SPACERS (03) - TRANSMISSION

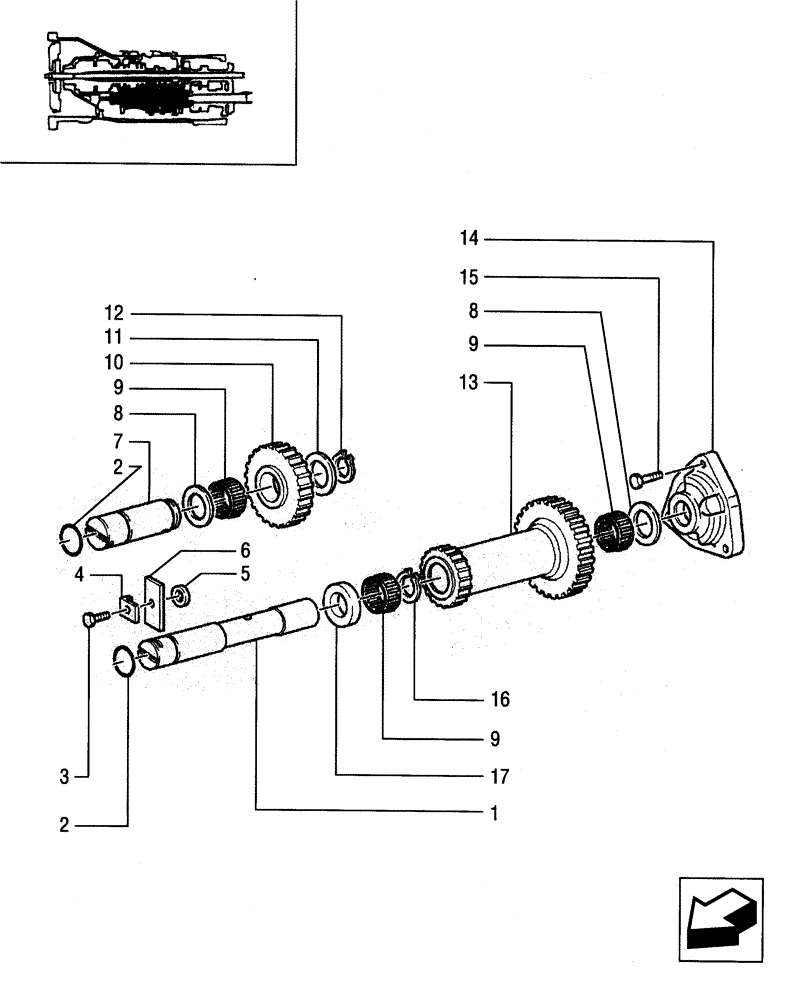

Схема запчастей Case IH JX65 - (1.28.1[05]) - GEARBOX GEARINGS - DRIVING GEARS AND SPACERS (03) - TRANSMISSION
9
5
3
10
8
7
15
12
13
2
6
1
2
16
4
8
9
9
14
17
11

Артикул

Название

Примечание

Количество

1

5117557

PIN,32mm OD x 218mm L

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

3

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

14198901

LOCKING PLATE,M12, Single Lock

1шт.

5

5117562

SPACER,12.5mm ID x 25mm OD x 6mm L

1шт.

6

5117561

PLATE

1шт.

7

5117567

PIN,32mm OD x 95mm L

1шт.

8

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

2шт.

9

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

3шт.

10

5160492

DRIVING GEAR

1шт.

11

5117570

THRUST WASHER,30mm ID x 48mm OD x 4.5mm Thk

1шт.

12

11068076

SNAP RING,M32, Ext

1шт.

13

5160495

IDLER GEAR

1шт.

14

5117552

COVER

1шт.

15

14238121

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

16

5137228

CIRCLIP

2шт.

17

5117563

THRUST WASHER,32mm ID x 48mm OD x 14.5mm Thk

1шт.

Выбрано товаров: 17
