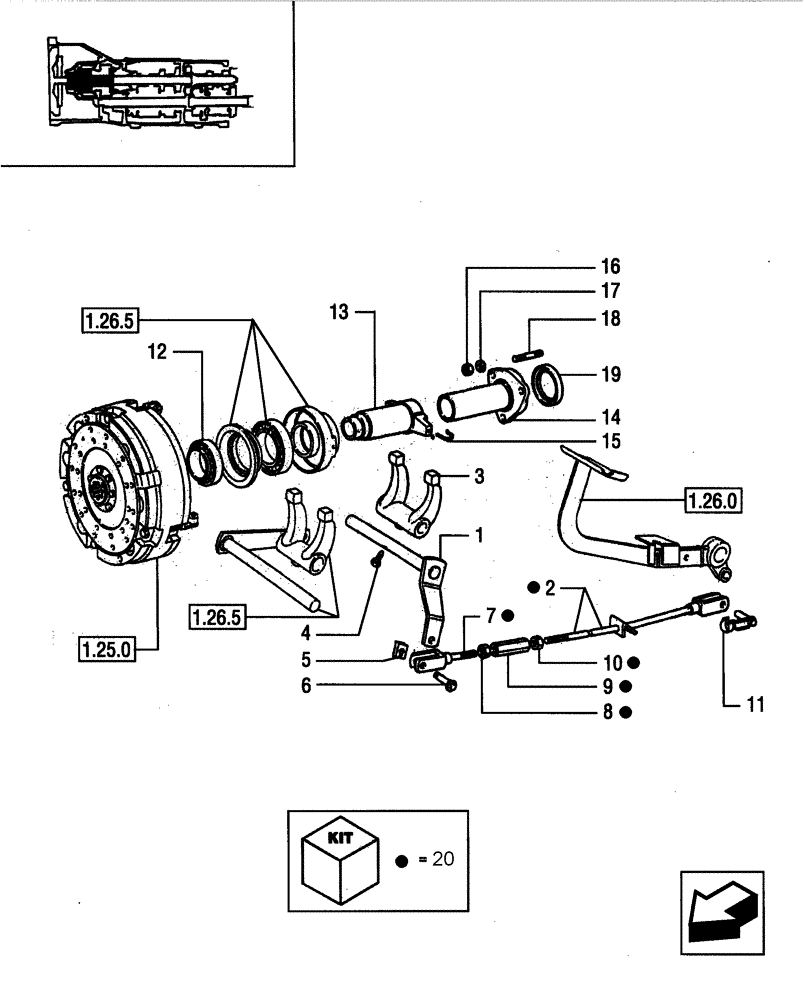

Запчасти Case IH JX65 (1.26.2) - LEVERS AND TIE-ROD - PEDAL, LEVER AND SUPPORT (03) - TRANSMISSION

1

5111587

LEVER

1шт.

2

5089921

ROD

1шт.

3

4993814

SHIFTER FORK,M16 x 1.5

1шт.

4

4968813

BOLT,Hex, M16 x 1.5 x 32mm

1шт.

5

11064176

CLIP,M10 x 8mm

M10 x 8 x 1.05

1шт.

6

5111590

PIN,10mm OD x 28mm L

1шт.

7

10008571

YOKE,M10 x 30mm L

1шт.

8

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

1шт.

9

10090811

NUT,M10 x 1.25 x 90mm, Cl R50

1шт.

10

10791511

THIN NUT,Thin, M10 x 1.25, Cl 04, LH

1шт.

11

5111594

PIN,10mm OD x 65mm L

1шт.

12

5122028

THRUST BEARING

JX75 - JX85 - JX95

1шт.

12

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

JX55 - JX65

1шт.

13

5089355

BEARING CARRIER,55mm ID x 182mm L

JX95

1шт.

13

5147787

BEARING CARRIER,Clutch

JX55 - JX65 - JX75 - JX85

1шт.

14

5089356

SUPPORT

JX95

1шт.

14

5128070

COVER

JX55 - JX65 - JX75 - JX85

1шт.

15

44011615

SPRING,15mm, Free Length

2шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

17

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

18

13517111

STUD,M8 x 12mm, Cl 5.8

3шт.

19

5144380

SEAL,45mm ID x 60mm OD x 7mm Thk

1шт.

20

5096080

ROD

Assy

1шт.
