Запчасти Case IH JX65 (1.25.0/ A) - CLUTCH - RELEVANT PARTS (03) - TRANSMISSION

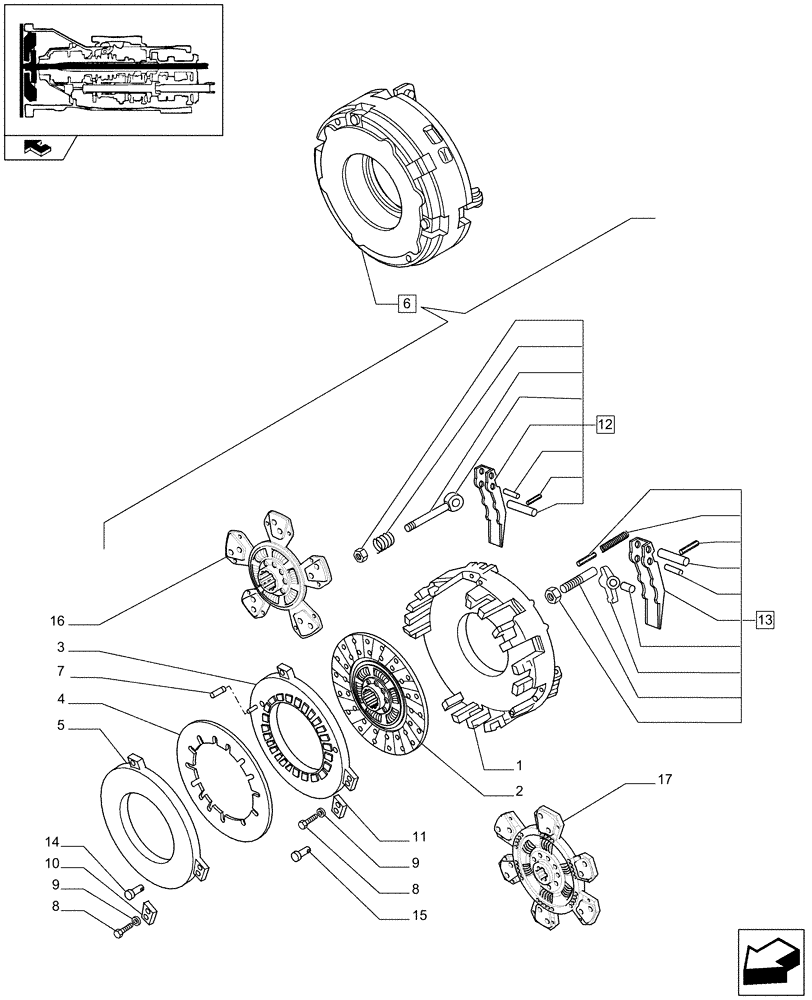

Схема запчастей Case IH JX65 - (1.25.0/ A) - CLUTCH - RELEVANT PARTS (03) - TRANSMISSION
8
10
12
9
13
8
14
1
3
11
2
4
6
16
9
5
15
17
7
home

Артикул

Название

Примечание

Количество

1

25281476

CLUTCH HOUSING

1шт.

2

5092790

CLUTCH & DISC ASSY,280mm OD

JX55, JX65

1шт.

5092790R

REMAN-CLUTCH PLATE

JX55, JX65

1шт.

5092790C

CORE-CLUTCH PLATE

Return Number

1шт.

3

25174761

CLUTCH PLATE

1шт.

4

25174661

BELLEVILLE SPRING

1шт.

5

25174734

CLUTCH PLATE

1шт.

6

5092787

CLUTCH,335mm OD

PTO, JX55, JX65

1шт.

5092787R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

5092787C

CORE-CLUTCH PLATE

Return Number

1шт.

6

5092792

CLUTCH,335mm OD

PTO, JX75

1шт.

5092792R

REMAN-CLUTCH PLATE

JX75

1шт.

5092792C

CORE-CLUTCH PLATE

Return Number

1шт.

5150646R

REMAN-CLUTCH PLATE

Reman for New PN 5092792

1шт.

5150646C

CORE-CLUTCH PLATE

Return Number

1шт.

6

5092796

CLUTCH,335mm OD

PTO, JX85

1шт.

7

25173704

PIN

3шт.

8

25286430

BOLT

3шт.

9

25274715

WASHER

3шт.

10

25221058

PLATE

3шт.

11

25220538

PLATE

3шт.

12

5093021

REPAIR KIT

Release Lever, Small

1шт.

13

5093020

REPAIR KIT

Release Lever, Large

1шт.

Kit contains 3 fingers, 3 nuts, 3 pins, 3 screws.

1шт.

14

25276325

RIVET

3шт.

15

25276324

RIVET

3шт.

16

5092794

CLUTCH PLATE,280mm OD

5 Pad, JX75

1шт.

5092794R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

5092794C

CORE-CLUTCH PLATE

Return Number, 5 Pad, JX75

1шт.

17

5092797

CLUTCH PLATE,283mm OD

6 Pad, JX85

1шт.

5092797R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

5092797C

CORE-CLUTCH PLATE

Return Number, 6 Pad, JX85

1шт.

Выбрано товаров: 32
