Запчасти Case IH JX65 (1.25.0/01B) - CLUTCH - RELEVANT PARTS - FOR STRADDLE VERSION (03) - TRANSMISSION

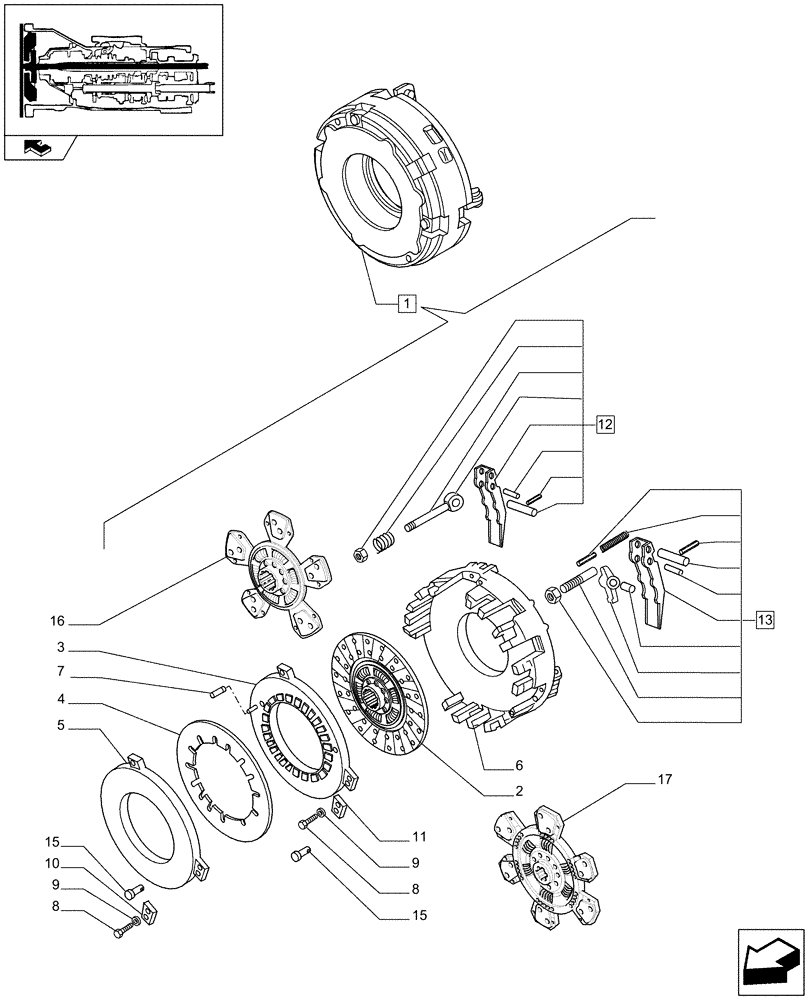

Схема запчастей Case IH JX65 - (1.25.0/01B) - CLUTCH - RELEVANT PARTS - FOR STRADDLE VERSION (03) - TRANSMISSION
11
15
3
1
9
17
16
15
5
10
2
6
9
home
13
8
12
4
7
8

Артикул

Название

Примечание

Количество

1

47583372

CLUTCH,337mm OD

1шт.

Valid for JX75 Model only

1шт.

Valid for JX55, Models only, with VAR.248, Cerametallic Clutch

1шт.

1

47583372R

REMAN-CLUTCH ASSY

1шт.

1

Valid for JX75 Model only

1шт.

1

Valid for JX55, Models only, with VAR.248, Cerametallic Clutch

1шт.

1

47583372C

CORE-CLUTCH ASSEMBLY

Reman Return Number

1шт.

1

47953610R

Reman Clutch Assy For 47583372R

REMAN-CLUTCH ASSY

1шт.

1

47953610C

Return Number

CORE-CLUTCH ASSEMBLY

1шт.

1

84328342

CLUTCH

1шт.

Valid for JX85 Model only

1шт.

Alternative

1шт.

1

84353940

CLUTCH,337mm OD

1шт.

Valid for JX85 Model only

1шт.

Alternative

1шт.

1

84328334

CLUTCH,327mm OD

1шт.

Valid for JX55, JX65 Models only

1шт.

2

84328362

CLUTCH PLATE

1шт.

Valid for JX85 Model only

1шт.

Alternative

1шт.

2

5092790

CLUTCH & DISC ASSY,280mm OD

1шт.

Valid for JX55, JX65 Models only

1шт.

5092790R

REMAN-CLUTCH PLATE

JX55, JX65

1шт.

5092790C

CORE-CLUTCH PLATE

Return Number

1шт.

3

25174761

CLUTCH PLATE

1шт.

4

25174661

BELLEVILLE SPRING

1шт.

5

C1008543

CLUTCH, PRESSURE PLA

1шт.

6

25584329

CLUTCH MECHANISM

1шт.

7

25173704

PIN

3шт.

8

25286430

BOLT

6шт.

9

25274715

WASHER

6шт.

10

25221058

PLATE

9шт.

11

25220538

PLATE

12шт.

12

5080821

CLUTCH

1шт.

Kit of 3 Pieces

1шт.

13

5080820

CLUTCH

1шт.

Kit of 3 Pieces

1шт.

14

25742115

WASHER

3шт.

15

25276324

RIVET

6шт.

16

5092794

CLUTCH PLATE,280mm OD

1шт.

Valid for JX75 Model only

1шт.

Valid for JX55, Models only, with VAR.248, Cerametallic Clutch

1шт.

5092794R

REMAN-CLUTCH PLATE

Reman for New PN 5092794

1шт.

5092794C

CORE-CLUTCH PLATE

Return Number

1шт.

17

5092797

CLUTCH PLATE,283mm OD

1шт.

Valid for JX85 Model only

1шт.

Alternative

1шт.

5092797R

REMAN-CLUTCH PLATE

Reman for New PN 5092797

1шт.

5092797C

CORE-CLUTCH PLATE

Return Number

1шт.

Выбрано товаров: 49
