Запчасти Case IH JX65 (1.14.7[01]) - FUEL TANK - SUPPORT, BRACKET AND TIE-ROD (02) - ENGINE EQUIPMENT

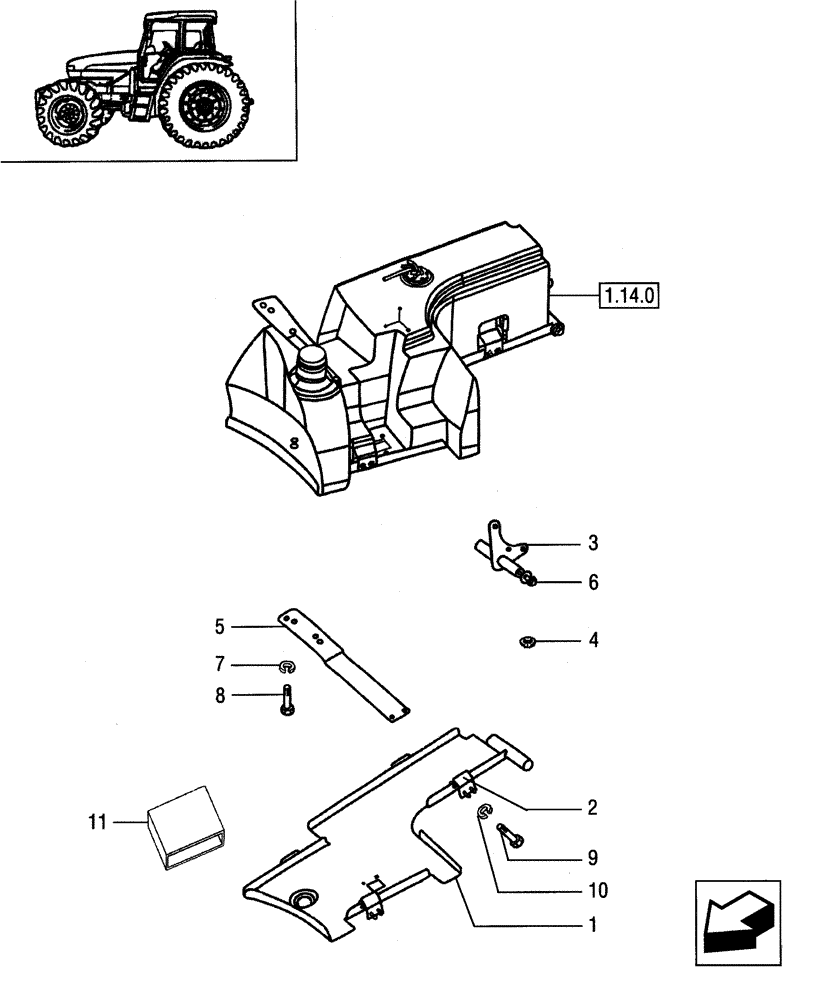

Схема запчастей Case IH JX65 - (1.14.7[01]) - FUEL TANK - SUPPORT, BRACKET AND TIE-ROD (02) - ENGINE EQUIPMENT
9
2
1.14.0
4
6
11
3
1
5
8
10
7

Артикул

Название

Примечание

Количество

1

5095411

SUPPORT

1шт.

2

5089670

PLATE

2шт.

3

5089671

PIN

1шт.

4

5090428

WASHER

1шт.

5

5089659

BRACKET

1шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

10572179

LOCK WASHER,M16

3шт.

8

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

7шт.

11

5092858

RUBBER PAD

4шт.

Выбрано товаров: 11
