Запчасти Case IH JX65 (1.14.6) - FUEL TANK - PIPES (02) - ENGINE EQUIPMENT

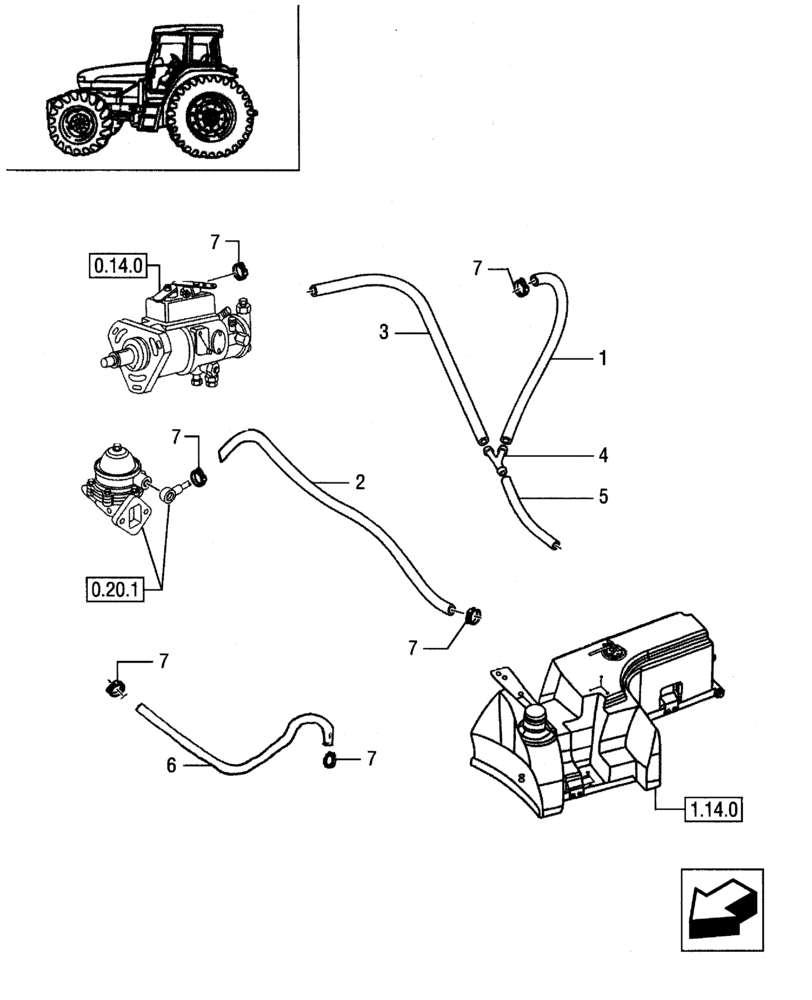

Схема запчастей Case IH JX65 - (1.14.6) - FUEL TANK - PIPES (02) - ENGINE EQUIPMENT
1.14.0
1
7
7
7
2
7
0.20.1
7
4
3
7
5
0.14.0
6

Артикул

Название

Примечание

Количество

1

5094402

FUEL HOSE

Fuel Tank Return, 1560 mm

1шт.

2

5094403

FUEL HOSE

Fuel Tank-Fuel Pump Suction, 1245 mm, JX95

1шт.

3

5090436

FUEL HOSE,7.00 mm ID x 1245.00 mm

Injection Pump "T"

1шт.

4

5090438

HYD CONNECTOR

Connection Hose Btwn."T" Connectors, 120 mm

1шт.

5

5094400

FUEL HOSE

1шт.

6

5094401

FUEL HOSE

Fuel Tank Breather, 450 mm

1шт.

7

10186590

CLAMP,11mm - 13mm

10шт.

Выбрано товаров: 7
