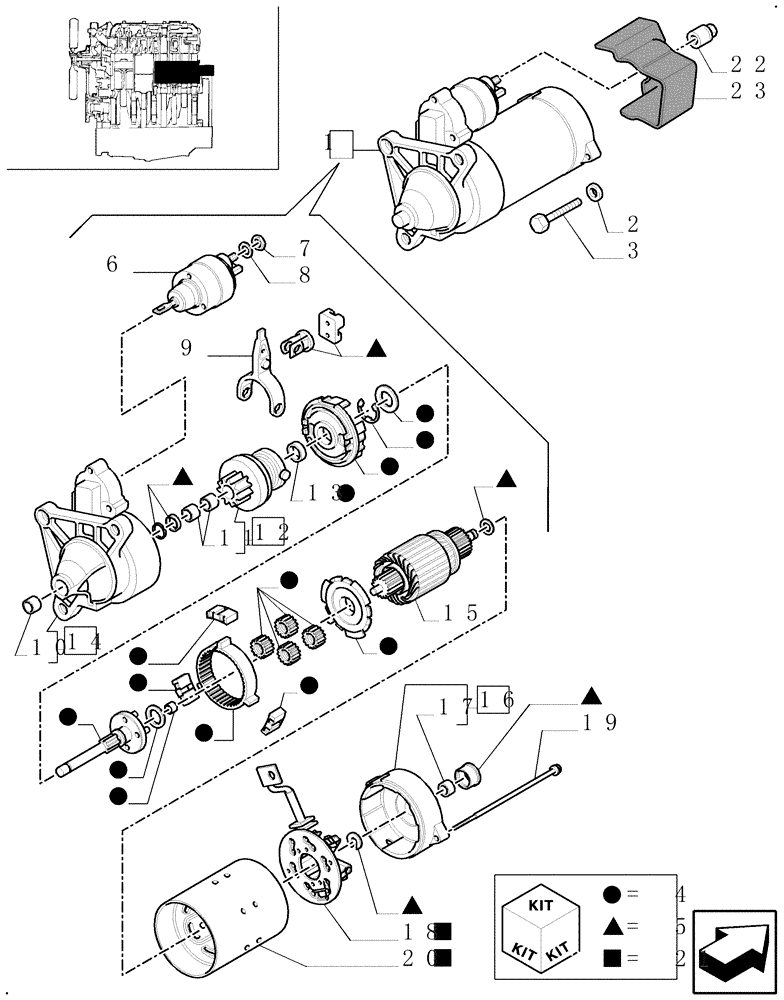

Запчасти Case IH JX65 (0.36.0/ A) - STARTER MOTOR (01) - ENGINE

1

500338953

STARTER MOTOR

1шт.

1

500338953R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

500338953C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

5801441816R

REMAN-STARTER,12V, 2.6kW

JX55, JX65 both (11/02-), Reman For New P/N 500338953

1шт.

5801441816C

CORE-STARTER,12V, 2.6kW

Return Number

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

3шт.

4

9972036

KIT

1шт.

5

9972035

KIT

1шт.

6

9971804

SOLENOID

1шт.

7

12164721

NUT,M10 x 1.25, Cl 10

1шт.

8

9971894

WASHER

1шт.

9

9971886

YOKE

1шт.

10

9972030

BUSHING

1шт.

11

79033670

BUSHING

2шт.

12

9972026

DRIVE UNIT

1шт.

13

9972037

BUSHING

1шт.

14

9972027

SUPPORT

1шт.

15

9972025

ROTOR

1шт.

16

9972034

COVER

1шт.

17

9971891

BUSHING

1шт.

18

9972033

SUPPORT

1шт.

19

9972031

SCREW

2шт.

20

9972032

ALTERNATOR STATOR

1шт.

21

9972038

KIT

1шт.

22

5171012

NUT,M10

1шт.

23

5189052

COVER

L = 62.5 mm

1шт.
