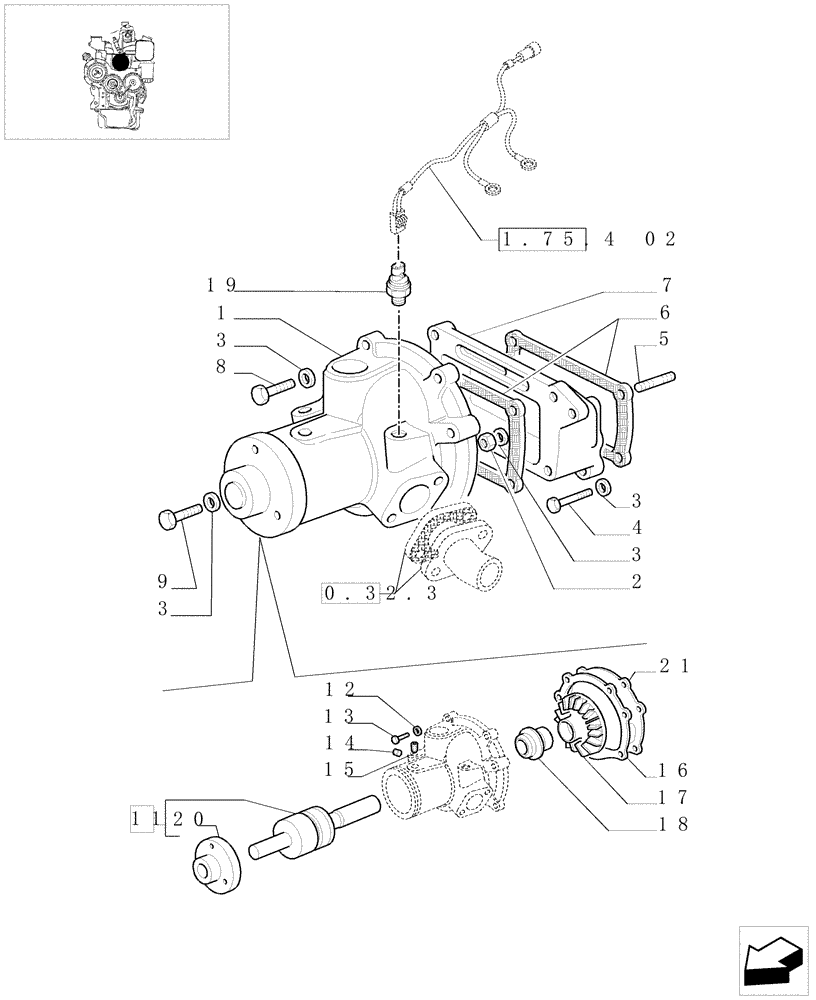

Запчасти Case IH JX60 (0.32.0) - WATER PUMP (01) - ENGINE

1

504065104

WATER PUMP

1шт.

504065104R

REMAN-WATER PUMP

JX80 (1/04)

1шт.

504065104C

CORE-WATER PUMP

Return Number

1шт.

2

12164740

NUT,M10 x 1.25, Brass

1шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

10шт.

4

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

5шт.

5

13449920

STUD

M10 X 1.25 X 15 X 40

1шт.

6

98400776

GASKET,0.8mm Thk

2шт.

7

4840211

SUPPORT

1шт.

8

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

3шт.

9

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

M10 x 1.25 x 35

1шт.

11

4829218

SHAFT

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

16997411

PLUG

M16 x 1.5

2шт.

15

13739811

SET SCREW,Hex Skt, M8 x 16mm, Cone Pt

1шт.

16

98400794

GASKET,0.5mm Thk

1шт.

17

4813442

IMPELLER

1шт.

18

7302756

GASKET

1шт.

19

504101267

SENDER UNIT

1шт.

20

4654154

HUB

1шт.

21

4599557

COVER

1шт.
