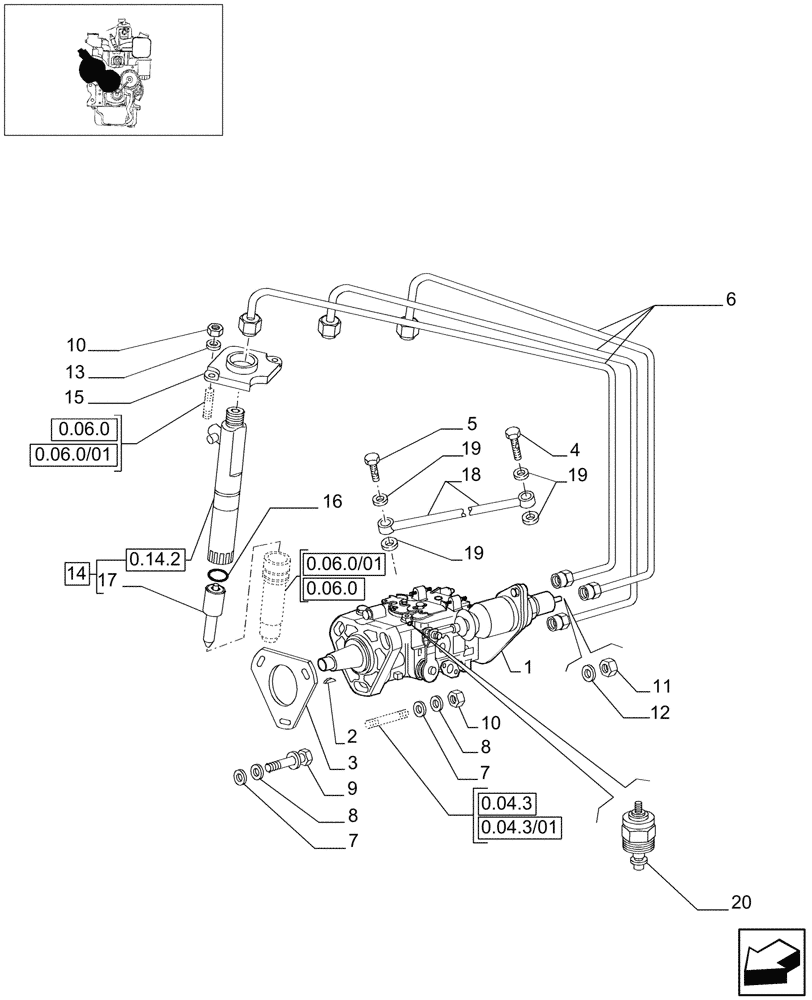

Запчасти Case IH JX60 (0.14.0[01]) - INJECTION PUMP (01) - ENGINE

1

504054473

FUEL INJECTION PUMP

JX60

1шт.

1

504054473R

REMAN-INJECTION PUMP

JX60

1шт.

1

504054473C

CORE-INJECTION PUMP

Return Number

1шт.

1

504054474

FUEL INJECTION PUMP

JX70

1шт.

1

504054474R

REMAN-INJECTION PUMP

JX70

1шт.

1

504054474C

CORE-INJECTION PUMP

Return Number

1шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4833907

BANJO BOLT

JX70

1шт.

5

4753761

BANJO BOLT

JX70

1шт.

6

99441952

HOSE KIT

1шт.

7

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

500327046

SCREW

1шт.

10

43362

NUT,M8 x 1.25, Cl 10

8шт.

11

17037721

NUT

M5

1шт.

12

11199271

LOCK WASHER

M5

1шт.

13

771326

WASHER,8.40mm ID

D=8 mm

6шт.

14

504054021

FUEL SYSTEM INJECTOR

JX60

3шт.

14

500307714

FUEL SYSTEM INJECTOR

JX70

3шт.

14

500307714R

REMAN-INJECT NOZZLE

JX70,

3шт.

14

500307714C

CORE-NOZZLE, INJECT

Return Number

3шт.

15

4780612

BRACKET

3шт.

16

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

17

504051747

NOZZLE

JX60

1шт.

17

99469341

NOZZLE

Assy, JX70

3шт.

18

504119497

TUBE

JX70

1шт.

19

2852057

SEALING WASHER,M8 x 12 x 1 Thk

JX70

4шт.

20

99478111

SOLENOID

1шт.
