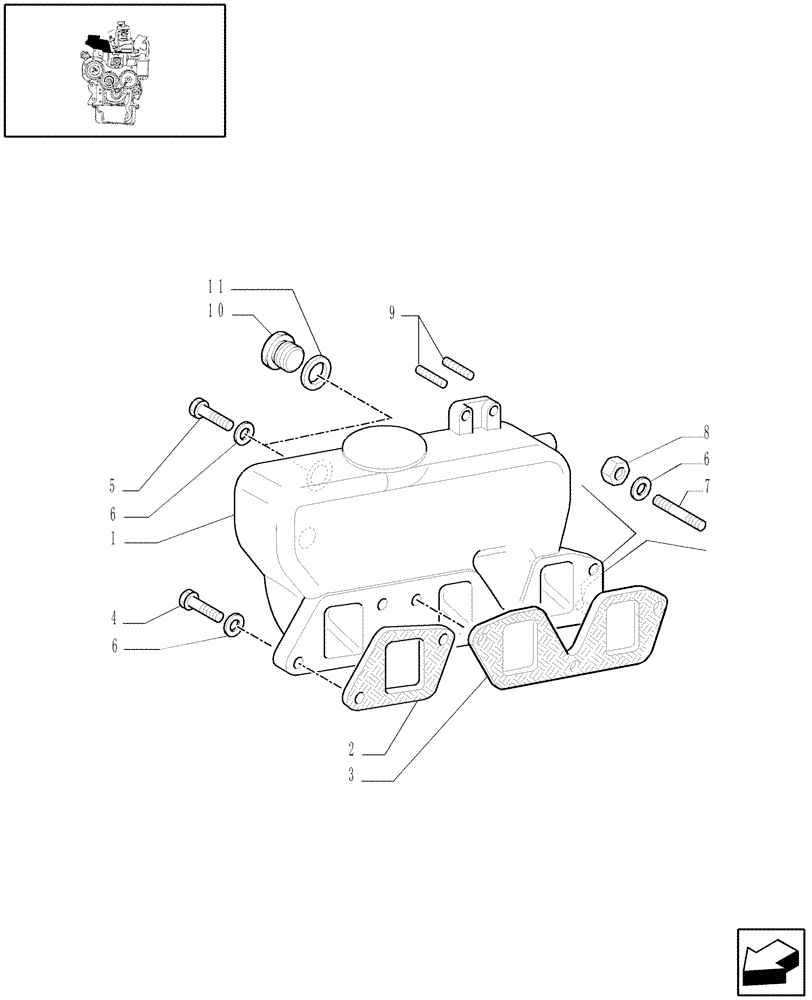

Запчасти Case IH JX60 (0.07.1/04) - (VAR.319-747) TTF MOTOR TIER2 - INTAKE MANIFOLD (01) - ENGINE

1

5096641

INLET MANIFOLD

JX60

1шт.

1

5097145

INLET MANIFOLD

JX70

1шт.

2

98400791

GASKET,0.8mm Thk

1шт.

3

4851921

GASKET,0.8mm Thk

1шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

4шт.

5

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

6

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

7

13543621

STUD,M8 x 16 x 30mm

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

13540921

STUD

2шт.

10

4577310

PLUG,1/2", Gas

1/2"

1шт.

11

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.
