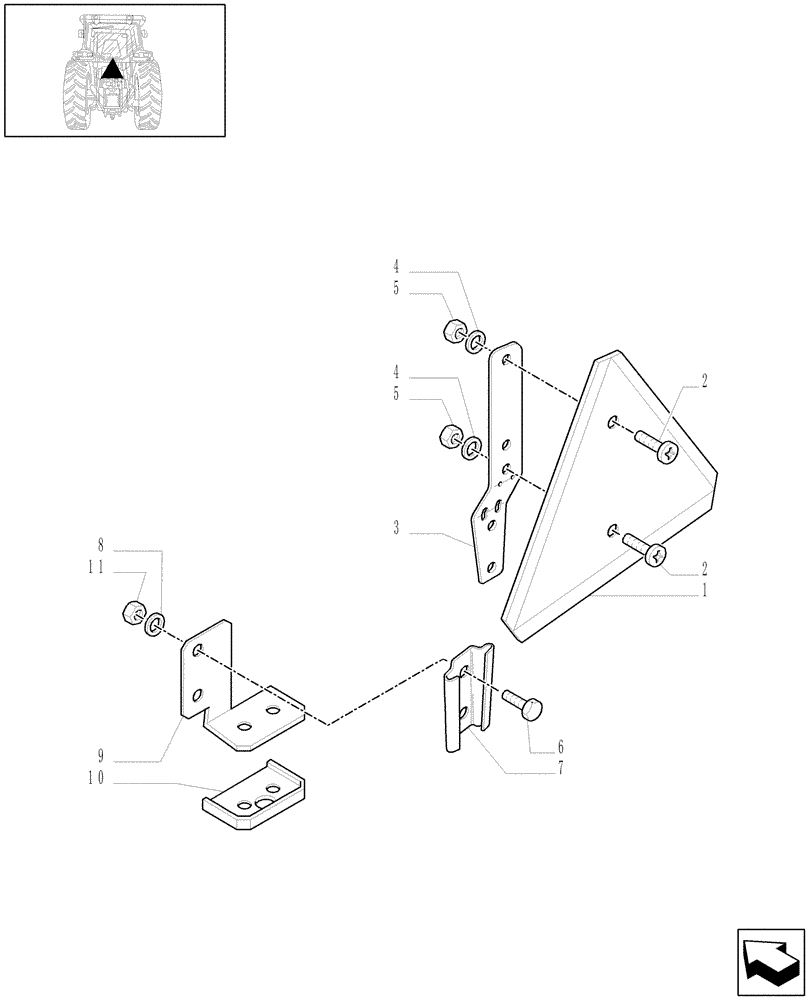

Запчасти Case IH JX60 (1.92.99/01) - (VAR.126) NORTH EUROPE PACKAGE - RETRO-REFLECTOR AND SUPPORT (10) - OPERATORS PLATFORM/CAB

1

86547710

EMBLEM

KIT SMV

1шт.

2

10376811

SCREW,Sl Pan Hd, M6 x 18mm, Cl 5.8

2шт.

3

5148516

BRACKET

1шт.

4

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

5

12574211

NUT,M6 x 1, Cl 8

2шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

7

5148517

SUPPORT

1шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

9

5092999

BRACKET

1шт.

10

5089433

PAD

1шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.
