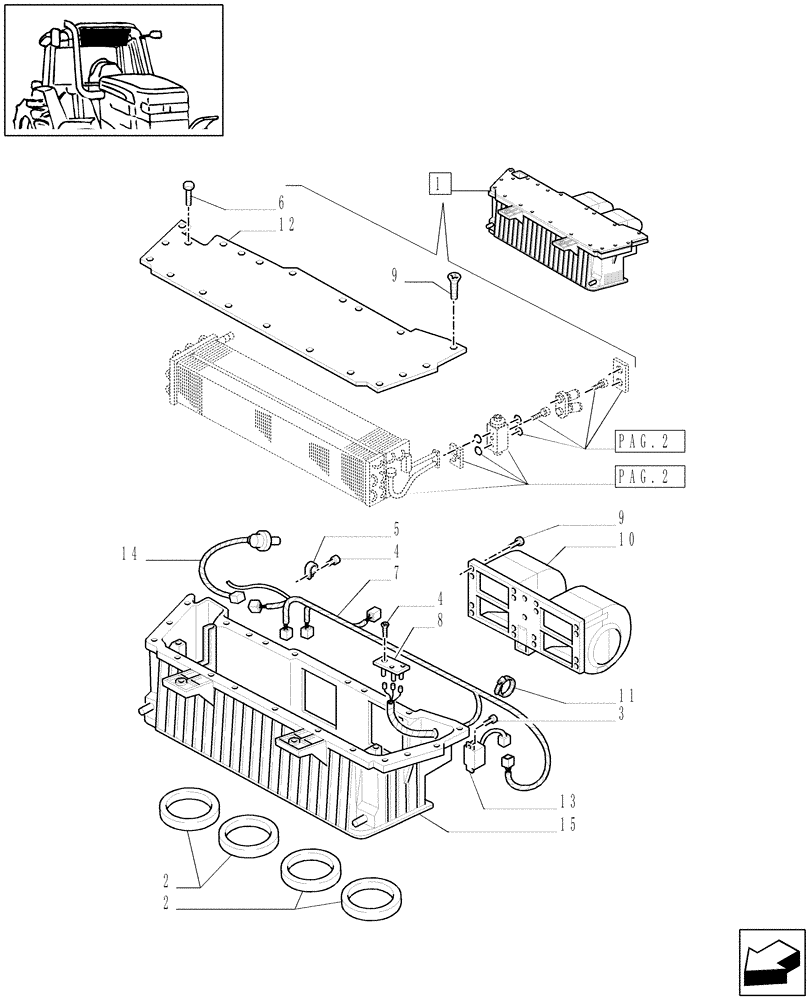

Запчасти Case IH JX60 (1.92.94/01A[01]) - AIR CONDITIONING - BREAKDOWN - C7039 (10) - OPERATORS PLATFORM/CAB

1

82034850

AIR CONDITIONER

& HEATER, ASSY

1шт.

2

81865554

SEAL,125mm ID x 165mm OD x 10mm Thk

4шт.

3

82000559

SCREW

2шт.

4

82000560

SCREW,Pan, M3.18 x 8mm

4шт.

5

82000564

CLIP

3шт.

6

82866253

SCREW,Phillips Drive, Pan HD, M6 x 9.65mm, SST

5шт.

7

82034871

WIRE HARNESS

Heater Control

1шт.

8

81870363

RESISTOR

1шт.

9

82001934

SCREW,Pan, M4.72 x 14.75mm, Mild Steel

15шт.

10

82034852

BLOWER

1шт.

10

82034854R

REMAN-DISTRIBUTOR

Reman for New PN 82034852

1шт.

10

82034854C

CORE-DISTRIBUTOR

Return Number

1шт.

11

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

1шт.

12

82000581

COVER

1шт.

13

82034877

THERMOSTATIC SWITCH

1шт.

14

82027128

POTENTIOMETER,A/C

1шт.

15

82000550

HOUSING

1шт.
