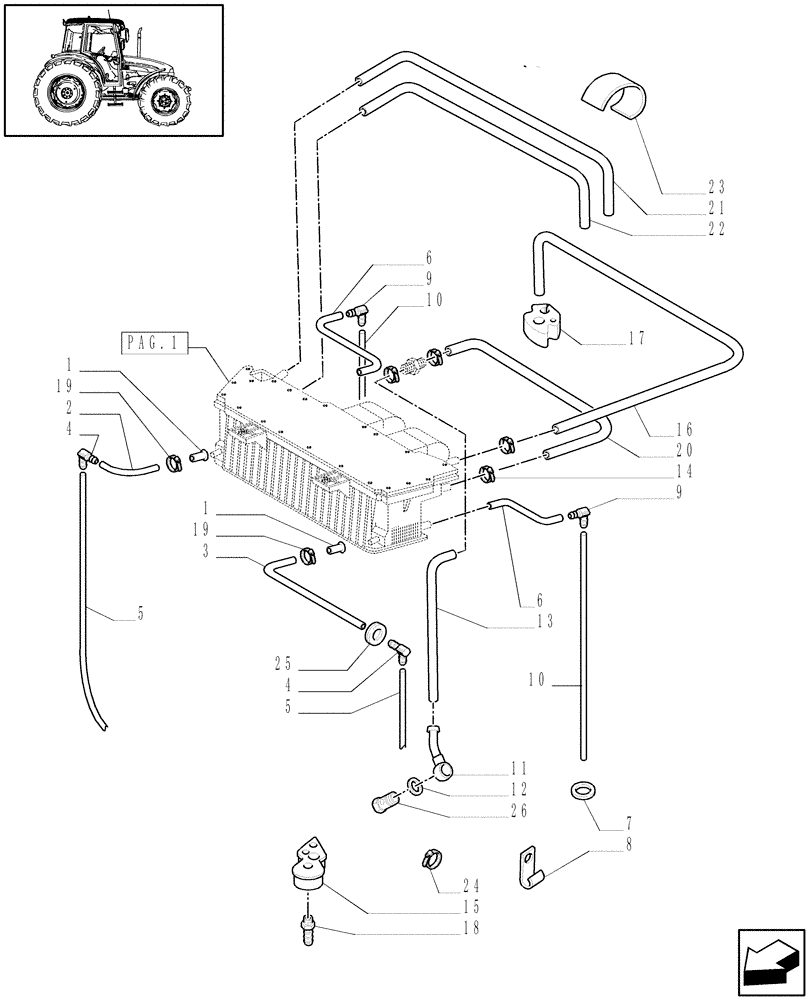

Запчасти Case IH JX60 (1.92.94/01[02]) - (VAR.641-958) AIR CONDITIONING UNIT- PIPES (10) - OPERATORS PLATFORM/CAB

1

9832278

RIVET

2шт.

2

5092894

HOSE

1шт.

3

5092893

HOSE

1шт.

4

83994810

ELBOW

2шт.

5

82011448

FLEXIBLE HOSE,6.00 mm ID x 1685.00 mm

A/C Evaporator Drain

2шт.

6

83994825

TUBE,10.00 mm ID x 543.00 mm

1шт.

7

81819333

GROMMET,.50" x 1 " x .75"

2шт.

8

5087916

CLAMP

1шт.

9

83994807

ELBOW

2шт.

10

83994822

A/C HOSE,829.00 mm

2шт.

11

87651646

PIPE

1шт.

12

10257460

SEAL,M20.3 x 26 x 1.5

2шт.

13

5091896

HEATER HOSE,16mm ID x 1080mm L

Heater Valve to Heater

1шт.

14

5085797

CLAMP

2шт.

15

5097321

FOAM INSULATION

1шт.

16

5091895

HEATER HOSE,16.00 mm ID x 3230.00 mm

Water Pump to Heater Valve, JX60, JX70, JX80, JX90

1шт.

16

5097243

HOSE,16mm ID x 3195mm L

Heater, JX95

1шт.

17

82001903

FOAM INSULATION

1шт.

18

5094423

HYD CONNECTOR

1шт.

19

10186590

CLAMP,11mm - 13mm

2шт.

20

5091897

FLEXIBLE HOSE,16.00 mm ID x 3990.00 mm

Heater to Lower Radiator Hose, JX60, JX70, JX80, JX90

1шт.

20

5097244

HEATER HOSE,16.00 mm ID x 4045.00 mm

Heater, JX95

1шт.

21

5091888

HOSE

& Tube, Serial Range: Dryer-Evaporator

1шт.

22

5091891

A/C HOSE

, Serial Range: Evaporator-Compressor

1шт.

23

87574249

INSULATOR

2шт.

24

5097835

COLLAR

10-16

2шт.

25

5094072

GROMMET

2шт.

26

10182611

BANJO BOLT,M20 x 1.5 x 36mm

1шт.
