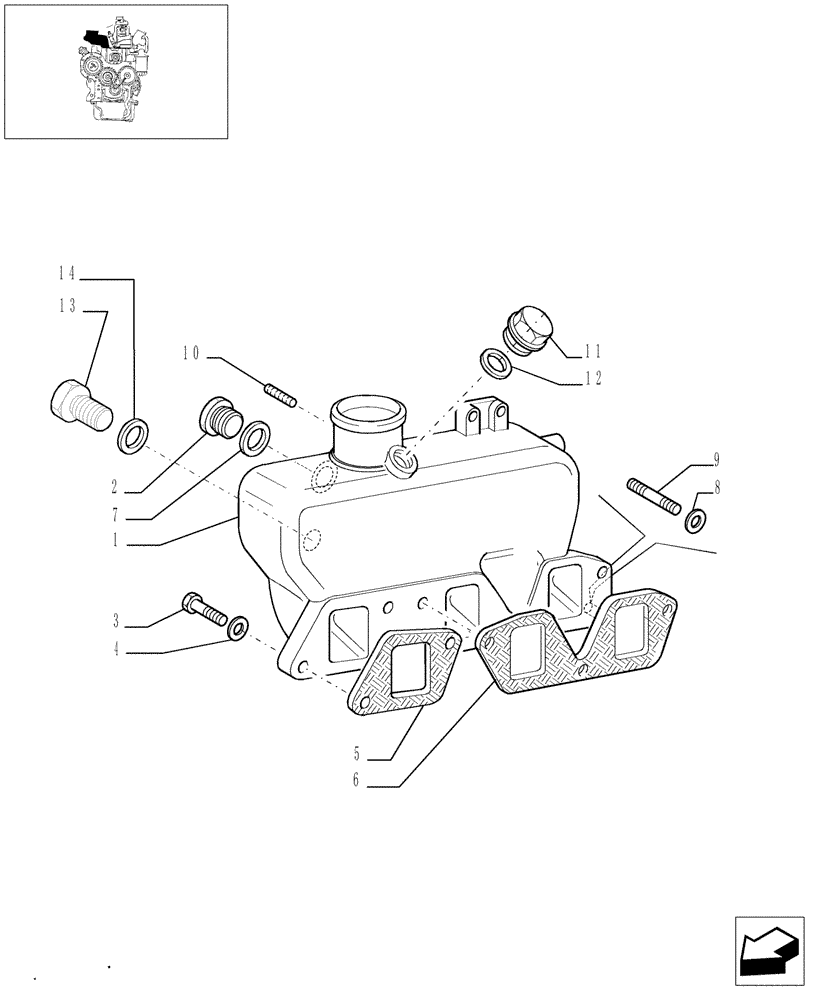

Запчасти Case IH JX60 (0.07.1) - INTAKE MANIFOLD (01) - ENGINE

1

504047535

INLET MANIFOLD

1шт.

2

4577310

PLUG,1/2", Gas

1/2"

1шт.

3

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

16605424

SCREW,Hex, M8

Cap, HH, CL 8.8, M8 x 1.25 x 16 mm

1шт.

4

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

5

504092110

GASKET,0.8mm Thk

1шт.

6

504092109

GASKET,0.8mm Thk

1шт.

7

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

8

2852057

SEALING WASHER,M8 x 12 x 1 Thk

1шт.

9

13543321

STUD

M8 x 16 x 20

1шт.

10

13540921

STUD

M6X12X16

2шт.

11

4827588

PLUG

M20X1,5

1шт.

12

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20X26X1,5

1шт.

13

4724588

PLUG

M8

1шт.

14

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

1шт.
