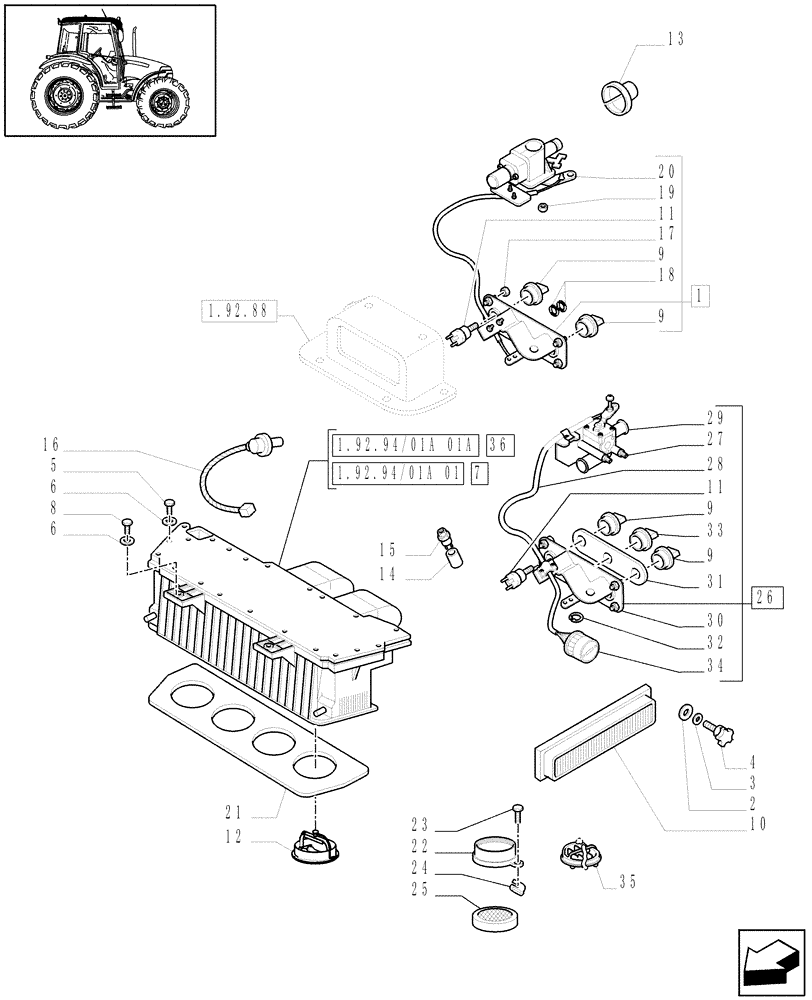

Запчасти Case IH JX60 (1.92.94/01[01]) - (VAR.641-958) AIR CONDITIONING UNIT - AIR CONDITIONER (10) - OPERATORS PLATFORM/CAB

1

5080116

SWITCH ASSY

Climate Control, Includes 9 & 113, Serial Range: -C6615

1шт.

2

5094485

WASHER

1шт.

3

5094484

WASHER

1шт.

4

5092916

KNOB

1шт.

5

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

6

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

7

82034850

AIR CONDITIONER

& Heater, ASSY, Serial Range: -C7039

1шт.

8

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

9

5091886

KNOB

Heater

2шт.

10

87603874

CAB FILTER

1шт.

11

5091892

SWITCH

Fan Speed

1шт.

12

5095622

VENT

, Serial Range: -HJJ075068

6шт.

13

87623093

KNOB

A/C

1шт.

14

81871638

FOAM INSULATION

1шт.

15

87356362

SWITCH ASSY

1шт.

16

81867584

SWITCH ASSY

Harness Assy-A/C Control Panel Wire

1шт.

17

81868671

NUT

, Serial Range: -C6615

1шт.

18

81829134

LOCK WASHER,0.464" ID x 0.76" OD x 0.04" Thk

2шт.

19

80274562

NUT

, Serial Range: -C6615

1шт.

20

5091894

DRAINCOCK/TAP SUPPLY

, Serial Range: -C6615

1шт.

21

87574245

ISOLATOR

1шт.

22

87574468

VENT

, Start Serial: HJJ075069

2шт.

23

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

, Start Serial: HJJ075069

12шт.

24

14226690

SQUARE NUT

, Start Serial: HJJ075069

12шт.

25

87574476

FILTER

JX90, JX95

6шт.

26

84277283

SWITCH ASSY

, Start Serial: D6615

1шт.

27

84277285

DRAINCOCK/TAP SUPPLY

, Start Serial: D6615

1шт.

28

84277477

MECHANISM

, Start Serial: D6615

1шт.

29

84277292

NUT

, Start Serial: D6615

1шт.

30

87623084

PANEL

, Start Serial: D6615

1шт.

31

87623087

PANEL

, Start Serial: D6615

1шт.

32

84277305

CIRCLIP

, Start Serial: D6615

1шт.

33

84277310

BUTTON

, Start Serial: D6615

1шт.

34

84277314

POTENTIOMETER

, Start Serial: D6615

1шт.

35

5108688

DIFFUSER

, Start Serial: D6867

4шт.

36

87701044

AIR CONDITIONER

ASSY, Start Serial: D7039

1шт.
