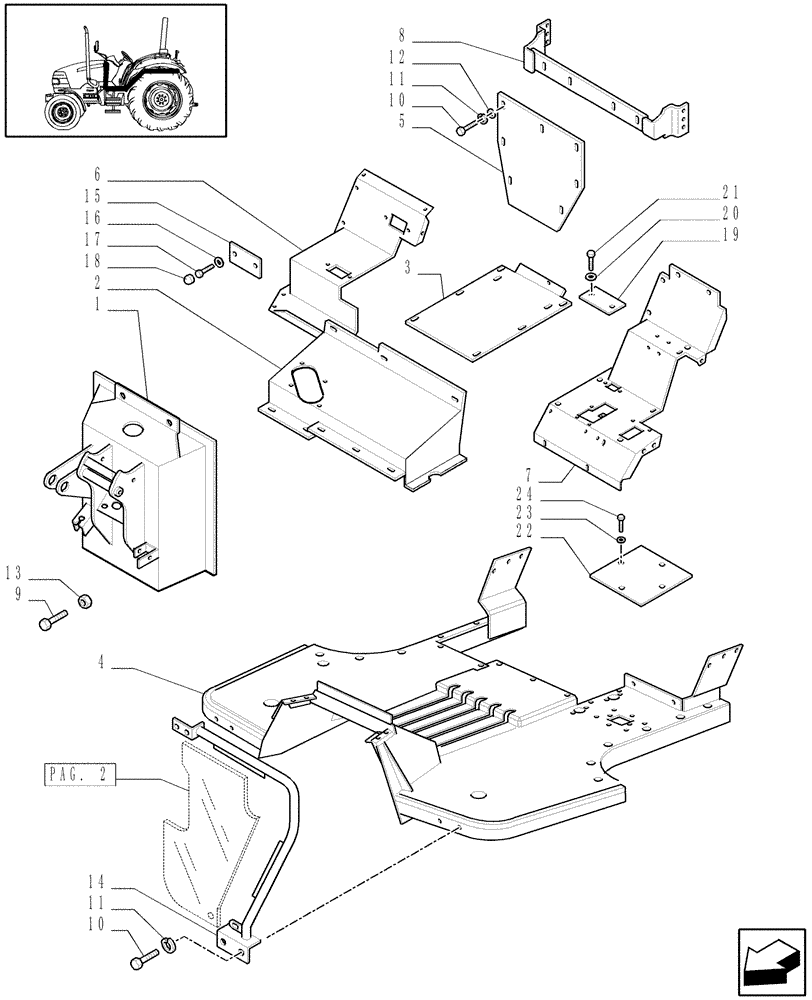

Запчасти Case IH JX60 (1.92.87[01]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5097817

GUARD

1шт.

2

5097715

FLOOR

1шт.

3

5089527

FLOOR

1шт.

4

87537918

FLOOR

1шт.

5

5089530

PLATFORM

1шт.

6

5097842

FLOOR

RH

1шт.

7

87393099

FLOOR

LH

1шт.

8

5091865

SUPPORT

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

33шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

33шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

30шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

11шт.

14

87725193

SUPPORT

LH

1шт.

14

87725192

SUPPORT

RH

1шт.

15

5092169

COVER

1шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

17

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

18

5089481

CAP,17mm OD

2шт.

19

87392979

PLATE

VAR.000

1шт.

20

12035670

LOCK WASHER

M6

2шт.

21

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

22

5093838

PLATE

VAR.116

1шт.

23

10569379

LOCK WASHER

M8

2шт.

24

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.
