Запчасти Case IH JX60 (1.92.85/07) - (VAR.963) DELUXE SEAT WITH RETRACTABLE BELTS AND SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

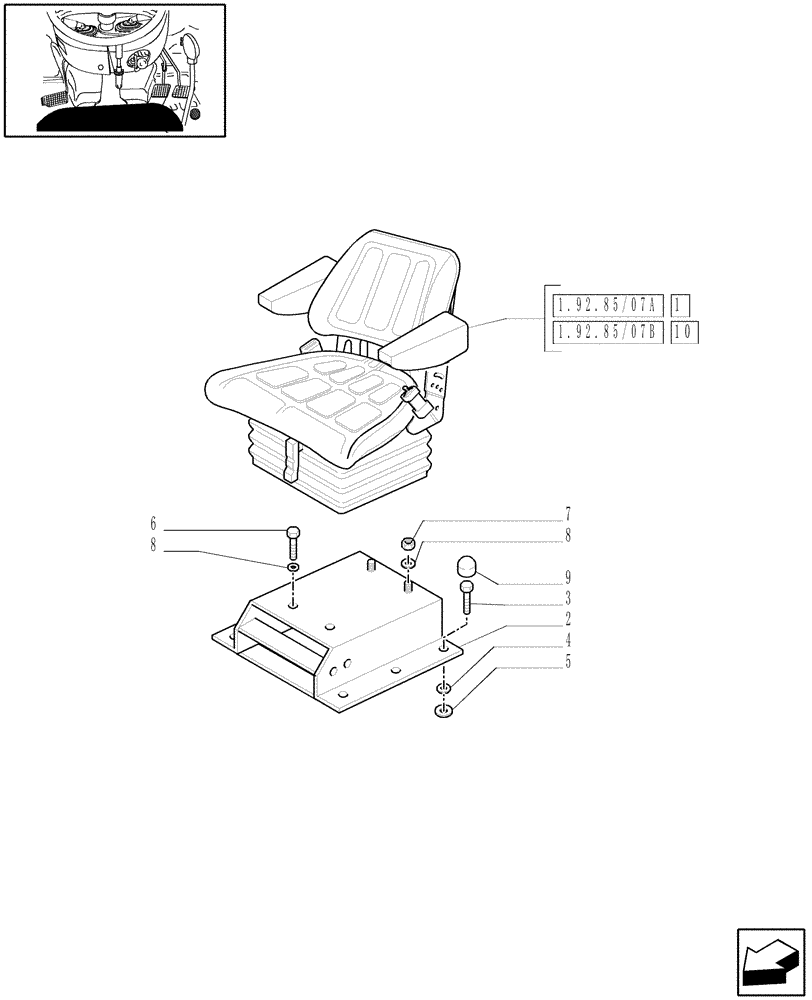

Схема запчастей Case IH JX60 - (1.92.85/07) - (VAR.963) DELUXE SEAT WITH RETRACTABLE BELTS AND SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB
9
6
1.92.85/07b
3
8
2
5
1
4
10
7
1.92.85/07a
8

Артикул

Название

Примечание

Количество

1

5091999

DRIVER SEAT

ASSY, Serial Range: -HJJ083939

1шт.

1

87586661

DRIVER SEAT

, Serial Range: HJJ083940-C5652

1шт.

2

5093531

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

9

5089481

CAP,17mm OD

W/Cab

6шт.

10

87634294

DRIVER SEAT

ASSY, Start Serial: D5652

1шт.

Выбрано товаров: 11
