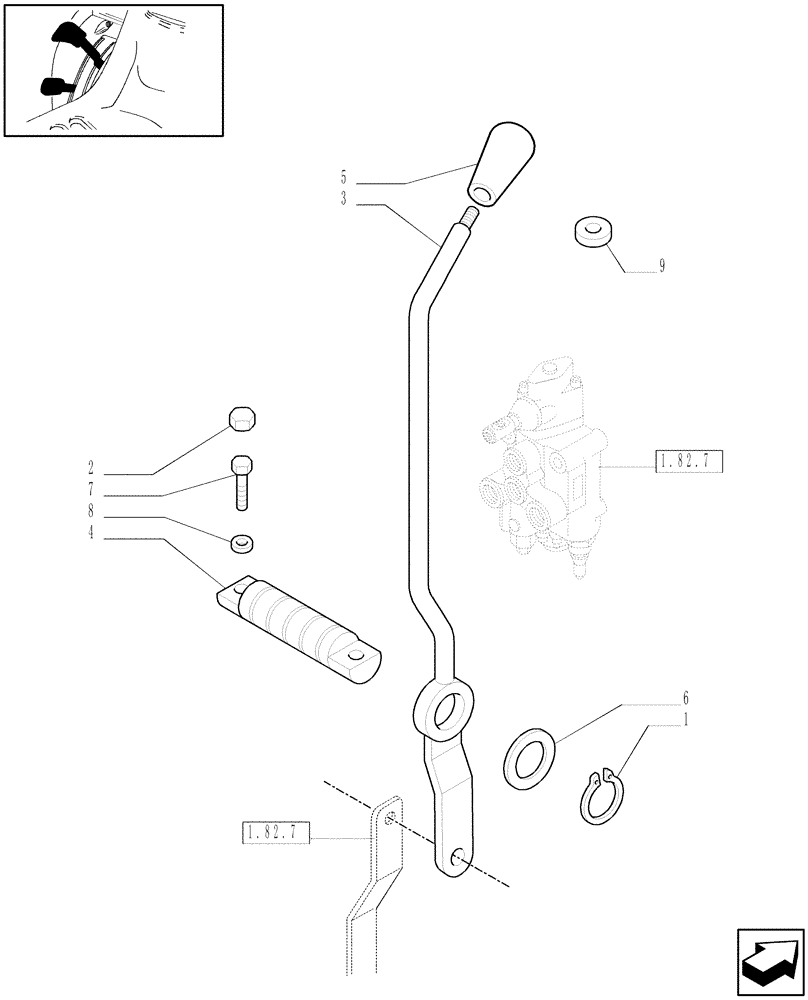

Запчасти Case IH JX60 (1.92.82) - (VAR.366-412) 1 CONTROL VALVE - LEVER AND KNOB (10) - OPERATORS PLATFORM/CAB

1

11066976

SNAP RING,M21, Ext

2шт.

2

5089481

CAP,17mm OD

2шт.

3

87391114

LEVER

1-2 Command Lever

1шт.

4

5133375

PIN,20mm OD x 100mm L

1шт.

5

5177017

HANDLE GRIP

Black

1шт.

6

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

5шт.

7

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

9

87612661

BUSHING,21mm ID x 38mm OD x 10mm L

3шт.
