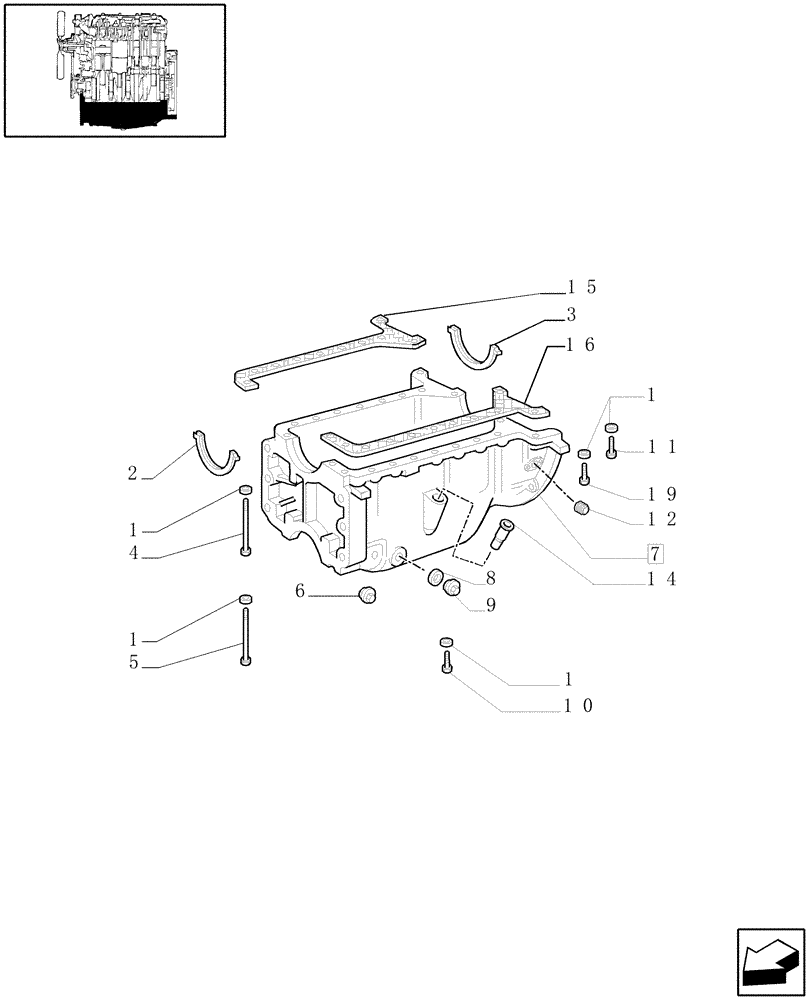

Запчасти Case IH JX60 (0.04.2/02) - (VAR.319-747) TTF ENGINE TIER2 - OIL PAN (01) - ENGINE

1

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

21шт.

2

4031577

SEAL,10mm Thk

1шт.

3

4600753

SEAL

1шт.

4

4607933

BOLT,Hex, M10 x 1.25 x 262mm

3шт.

5

4607934

SCREW,Hex, M10 x 1.25 x 178mm

M10 x 1.25 x 178

2шт.

6

590353

PLUG,15mm OD x 10mm High, Plastic

2шт.

7

87736778

ENGINE OIL PAN

1шт.

8

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

9

2852318

PLUG,Rd Hd, Int Hex, M22 x 1.5 x 16mm, ORB

M22 x 1.5

1шт.

10

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

9шт.

11

15971431

BOLT,Hex, M10 x 1.25 x 80mm, Cl 10.9

5шт.

12

504142590

PLUG

1шт.

13

11306931

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

2шт.

14

4694949

TUBE

1шт.

15

500347230

OIL SEAL

RH with 10 holes

1шт.

16

500347231

OIL SEAL

LH with 11 holes

1шт.
