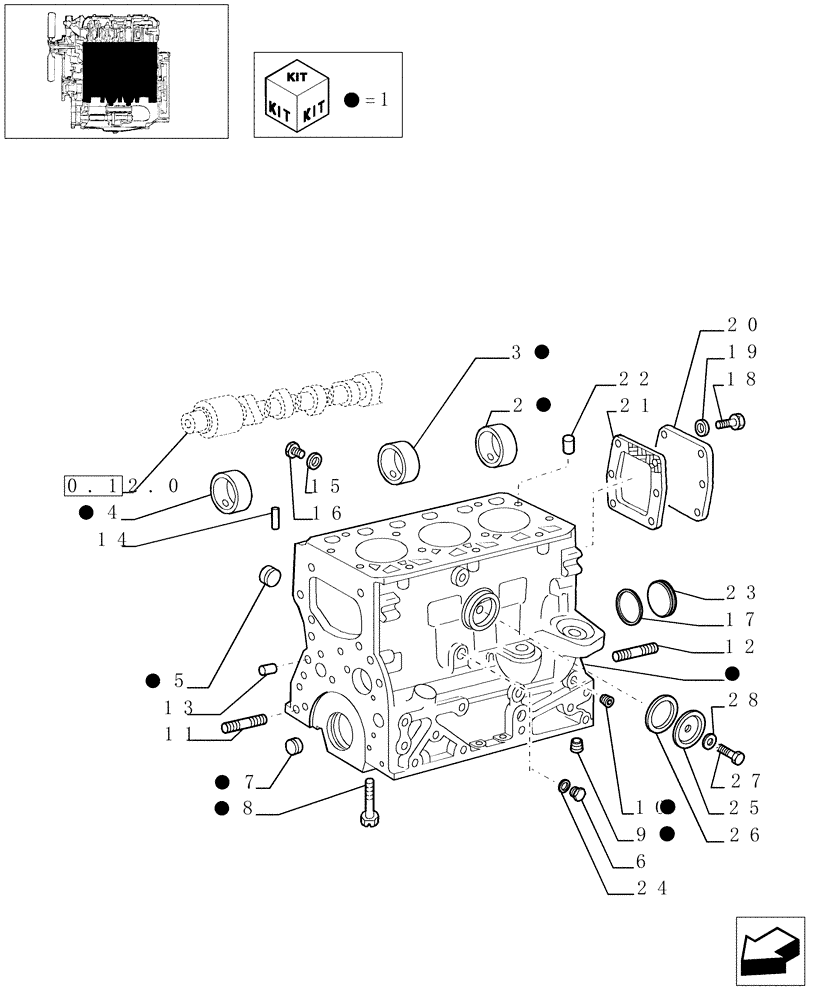

Запчасти Case IH JX60 (0.04.0) - CRANKCASE (01) - ENGINE

1

504067406

CYLINDER BLOCK

- ASSY

1шт.

2

4718620

BUSHING,49.53mm ID x 53.93mm OD x 25mm L

1шт.

3

4718619

BUSHING,50.63mm ID x 54.53mm OD x 28mm L

1шт.

4

9973969

BUSHING,51.08mm ID x 54.93mm OD x 28mm L

1шт.

5

14282770

PLUG,M36, Tapered, Stainless

3шт.

6

98415314

PLUG

M22 x 1.5

1шт.

7

14328501

PLUG,M16, Tapered

5шт.

8

4792169

BOLT,Hex, M14 x 1.5 x 115mm

M14 x 1.5 x 137

8шт.

9

99434268

PLUG

M16 x 1.5

1шт.

10

99434231

PLUG

M10 x 1.25

4шт.

11

13517821

STUD,M8 x 1.25 x 60mm, Cl 8.8

M8 x 60

1шт.

12

16735724

STUD

M14 x 20 x 55

2шт.

13

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

14

14165470

LOCK PIN,M5 x 10, Slotted

D=5 mm

1шт.

15

10265460

SEAL

D=49 x 42 x 1.5

1шт.

16

4665029

PLUG

M42 x 1.5

1шт.

17

14459981

O-RING,58.42mm ID x 0.103" Width

1шт.

18

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

20

4653282

COVER

1шт.

21

99445564

GASKET

1шт.

22

4846850

DOWEL,M9 x 12mm

1шт.

23

98412737

PLUG,55mm ID x 63.93mm OD x 8mm Thk, w/O-Ring

M63

1шт.

24

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

25

4811892

COVER

1шт.

26

4600893

SEAL,37mm ID x 47mm OD x 4mm Thk

1шт.

27

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

28

4760498

LOCK WASHER

1шт.
