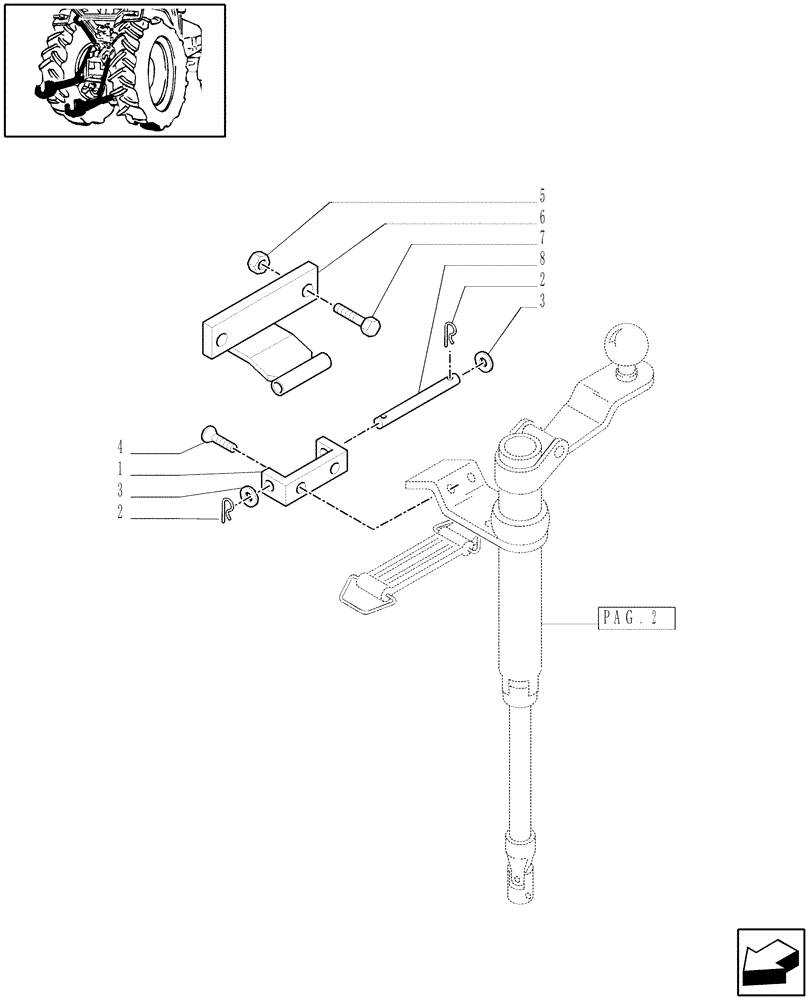

Запчасти Case IH JX60 (1.89.6[03]) - IMPLEMENT CARRIER (09) - IMPLEMENT LIFT

1

5092709

HINGE

1шт.

2

10734201

COTTER PIN,M2 x 12

2шт.

3

10519501

WASHER,7.15mm ID x 13mm OD x 1.5mm Thk

2шт.

4

10356111

BOLT

2шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

L/Cab

2шт.

6

5095887

SUPPORT

L/CAB

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

L/Cab

2шт.

8

5092710

PIN

1шт.
