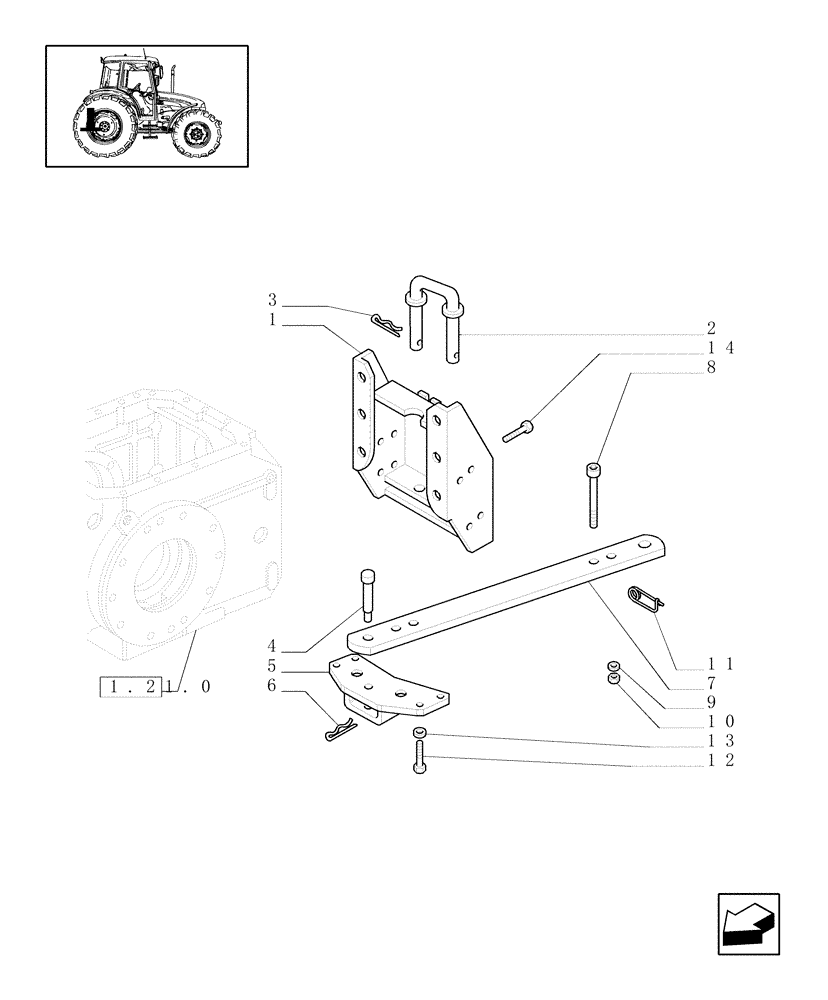

Запчасти Case IH JX60 (1.89.0/01) - (VAR.905) DRAWBAR AND SUPPORT WITHOUT PIN (HOLE DIAMETER 33 MM) (09) - IMPLEMENT LIFT

1

5093158

SUPPORT

1шт.

2

5123643

PIN

D=19X107

1шт.

3

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

4

5123642

PIN

1шт.

5

5120238

BRACKET

1шт.

6

84416689

COTTER PIN

4MM

1шт.

7

84200418

DRAWBAR

1шт.

8

11244621

BOLT,Hex, M18 x 1.5 x 60, 10.9

1шт.

9

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

1шт.

10

10721021

NUT,M18 x 1.5, Cl 10

1шт.

11

5092987

SPRING

1шт.

12

15981821

SCREW,Hex, M16 x 1.5 x 120mm, Cl 8.8

4шт.

13

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

14

15981524

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.
