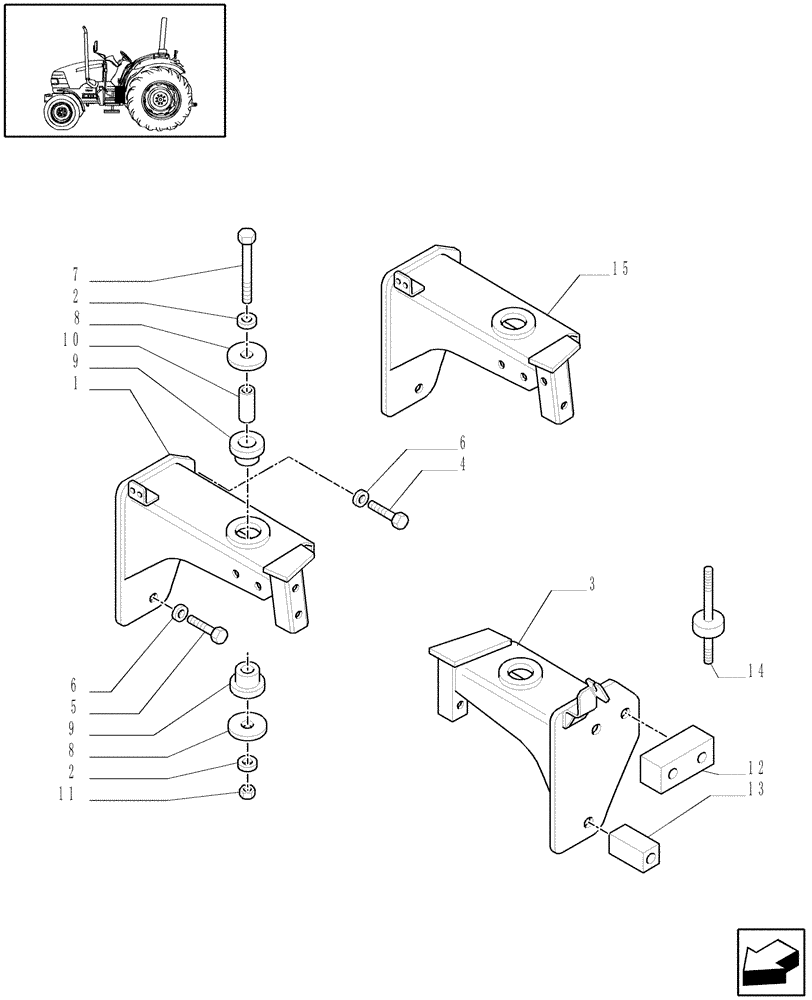

Запчасти Case IH JX60 (1.87.0/02[02]) - (VAR.007) NA PACKAGE - SUPPORTS - L/CAB (08) - SHEET METAL

1

87519882

SUPPORT

RH, 176 mm (6.92 in) Bottom of Plate to Center of Hole, Serial Range: -C5886

1шт.

2

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

6шт.

3

87391996

SUPPORT

LH, 176 mm (6.92 in) Bottom of Plate to Center of Hole

1шт.

4

15981421

SCREW,Hex, M16 x 1.5 x 85mm, Cl 8.8

M16 x 1.5 x 85

4шт.

5

11369624

BOLT,Hex, M16 x 1.5 x 110, 8.8

2шт.

6

10572179

LOCK WASHER,M16

6шт.

7

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

2шт.

8

5167723

WASHER,12.5mm ID x 75mm OD x 4mm Thk

6шт.

9

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

8шт.

10

5167724

SPACER,12.25mm ID x 17mm OD x 38mm L

4шт.

11

16105021

LOCK NUT,M12 x 1.25, Cl 10

6шт.

12

5092834

SPACER

2шт.

13

5092835

SPACER

2шт.

14

87396006

CROSS

2шт.

15

87725695

SUPPORT

RH, 176 mm (6.92 in) Bottom of Plate to Center of Hole, Start Serial: D5886

1шт.
