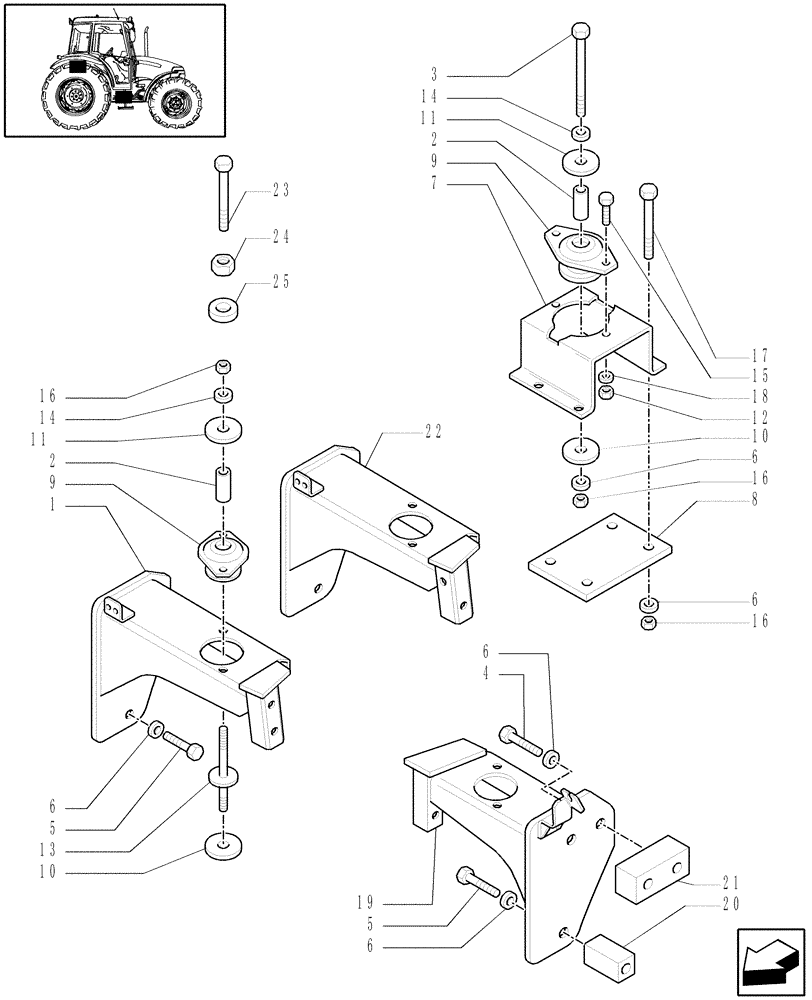

Запчасти Case IH JX60 (1.87.0/02[01]) - (VAR.007) NA PACKAGE - SUPPORTS - W/CAB (08) - SHEET METAL

1

87519883

SUPPORT

RH, Serial Range: -C5886

1шт.

2

5132014

SPACER,17mm ID x 24mm OD x 57mm L

4шт.

3

15864324

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

2шт.

4

15981421

SCREW,Hex, M16 x 1.5 x 85mm, Cl 8.8

M16 x 1.5 x 85

4шт.

5

11369624

BOLT,Hex, M16 x 1.5 x 110, 8.8

2шт.

6

10572179

LOCK WASHER,M16

16шт.

7

5089522

SUPPORT

2шт.

8

5089900

SUPPORT

, Serial Range: -C5973

2шт.

9

5132016

ISOLATOR

4шт.

10

5092190

SPACER,17mm ID x 90mm OD x 8mm L

4шт.

11

5092191

SPACER,17mm ID x 90mm OD x 4mm L

4шт.

12

12164711

NUT,M10 x 1.25, Cl 8

8шт.

13

5089999

STUD

2шт.

14

13580101

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

15

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

16

12164121

NUT,M16 x 1.5, Cl 10

, Serial Range: -C5973

10шт.

17

15983221

SCREW,Hex, M16 x 220mm, Cl 8.8

, Serial Range: -C5973

8шт.

18

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

19

87391997

SUPPORT

LH

1шт.

20

5092835

SPACER

2шт.

21

5092834

SPACER

2шт.

22

84145258

SUPPORT

RH, Start Serial: D5886

1шт.

23

15985031

BOLT,Hex, M18 x 1.5 x 90mm, Cl 10.9

, Start Serial: D5973

6шт.

24

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

, Start Serial: D5973

6шт.

25

10721021

NUT,M18 x 1.5, Cl 10

, Start Serial: D5973

6шт.
