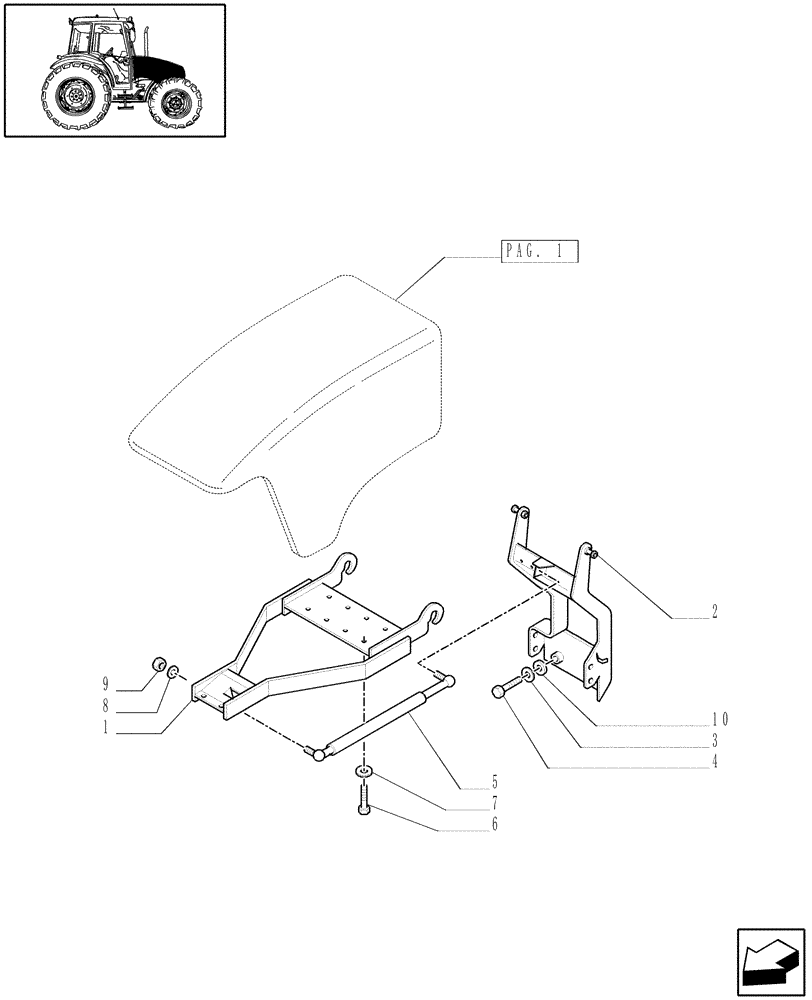

Запчасти Case IH JX60 (1.83.0[03]) - HOODS (08) - SHEET METAL

1

5093823

SUPPORT

JX60, JX70

1шт.

1

5093824

SUPPORT

JX80, JX90

1шт.

1

5093825

SUPPORT

JX95

1шт.

2

87394838

SUPPORT

JX60, JX70

1шт.

2

87394839

SUPPORT

JX80, JX90

1шт.

2

87394837

SUPPORT

JX95

1шт.

3

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

3шт.

4

11098631

BOLT,Hex, M10 x 45mm, Cl 10.9, Full Thd

3шт.

5

87480243

GAS STRUT

JX60, JX70

1шт.

5

87480241

GAS STRUT

JX80, JX90

1шт.

5

87480239

GAS STRUT

JX95

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

10шт.

7

12642701

WASHER,8.15mm ID x 12mm OD x 1mm Thk

10шт.

8

10516674

LOCK WASHER,M8

2шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

3шт.

10

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

3шт.
