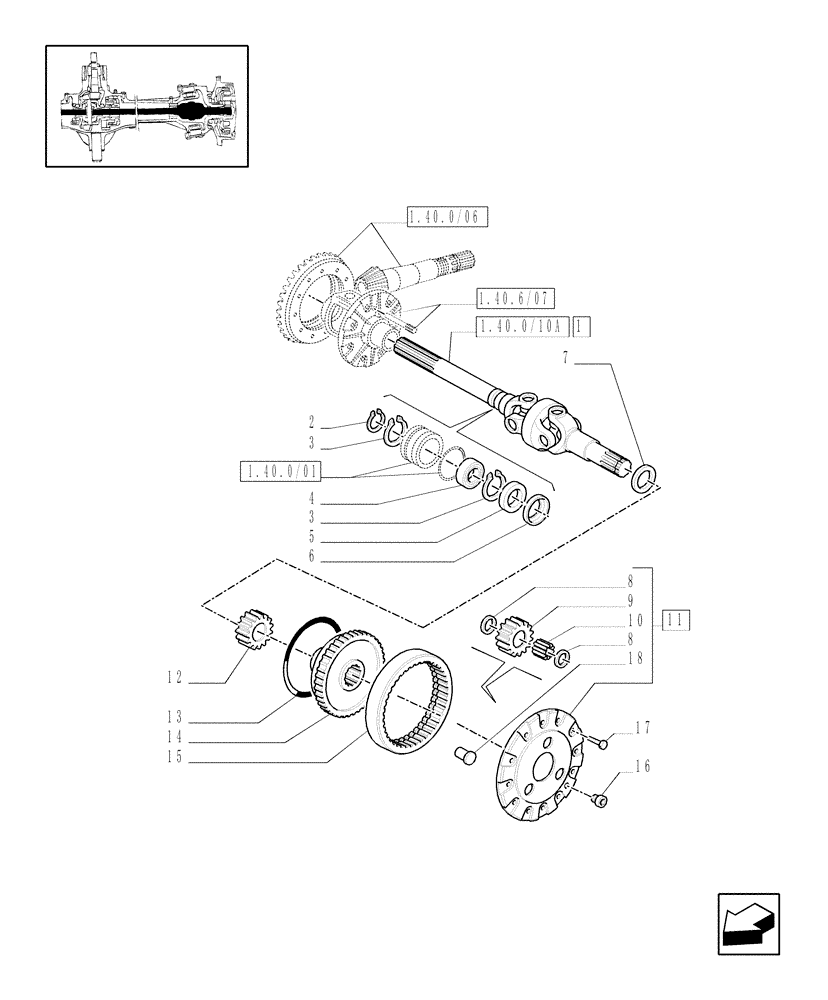

Запчасти Case IH JX60 (1.40. 6/10) - (VAR.325/1) 4WD FRONT AXLE NO-SPIN DIFFERENTIAL LOCK - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING

1

5186865

AXLE-SHAFT, ARTICULA

RH, ASSY

1шт.

1

5186867

ARTICULATED SHAFT

LH, ASSY

1шт.

2

11067876

SNAP RING,M30, Ext

2шт.

3

11060676

CIRCLIP,M55, Int

4шт.

4

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

5

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

6

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

7

5135386

SEAL,30mm ID x 42mm OD x 14mm Thk

2шт.

8

5100513

WASHER,22.5mm ID x 42mm OD x 0.8mm Thk

12шт.

9

5100509

PLANETARY GEAR

6шт.

10

5103755

ROLLER BEARING,22.4mm ID x 32.4mm OD x 25.8mm W

6шт.

11

5143847

SUPPORT

2шт.

12

5116664

GEAR

2шт.

13

5100512

CIRCLIP

2шт.

14

5193276

DISC

2шт.

15

5100507

RING GEAR

2шт.

16

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

17

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

18

5100511

PIN,6mm OD x 27mm L

3шт.
