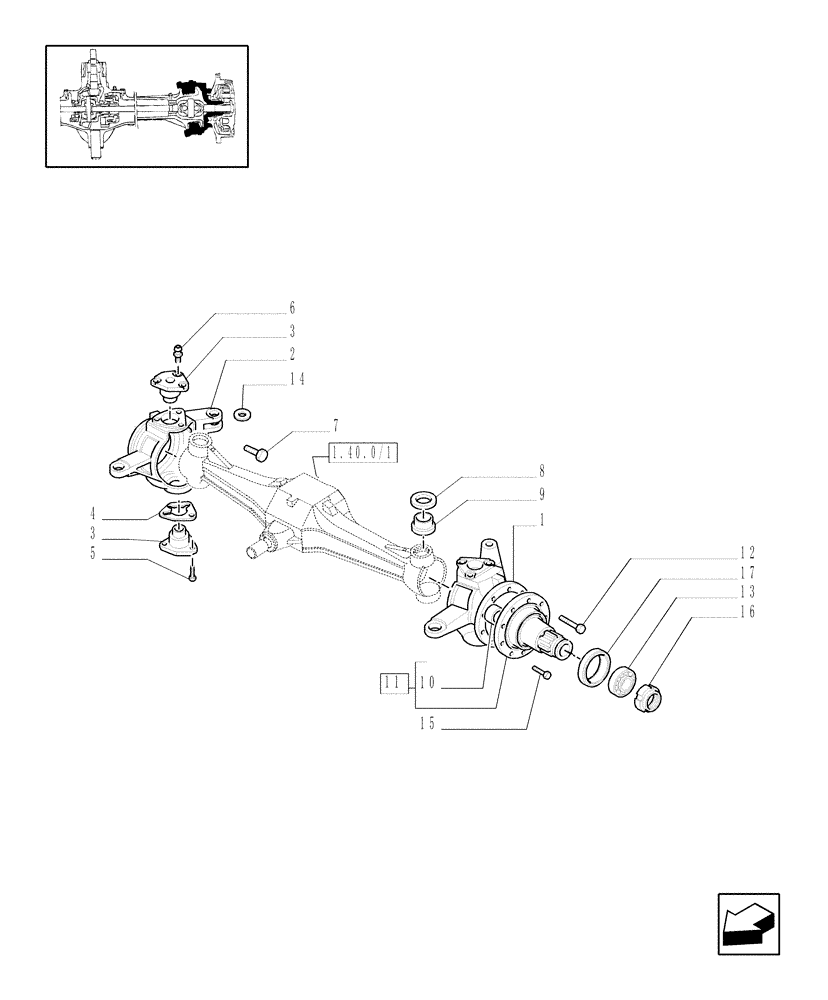

Запчасти Case IH JX60 (1.40. 6/02) - (VAR.325/1) 4WD FRONT AXLE NO-SPIN DIFFERENTIAL LOCK - STEERING KNUCKLE (04) - FRONT AXLE & STEERING

1

5126626

STEERING KNUCKLE

1шт.

2

5126627

STEERING KNUCKLE,RH

1шт.

3

5122540

PIN

4шт.

4

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

4

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

4

5100791

SHIM,.20mm Thk

1шт.

4

5100792

SHIM,.25mm Thk

1шт.

4

5100793

SHIM,.30mm Thk

1шт.

5

14233434

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

6

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

7

5126628

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9

1шт.

8

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

9

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

4шт.

10

5135385

BUSHING,30.05mm ID x 34.13mm OD x 20mm L

1шт.

11

5193272

SHAFT

2шт.

12

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

13

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

2шт.

14

5166180

SPACER,10.2mm ID x 20mm OD x 9mm L

1шт.

15

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

16шт.

16

5193273

NUT

2шт.

17

5135387

OIL SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.
