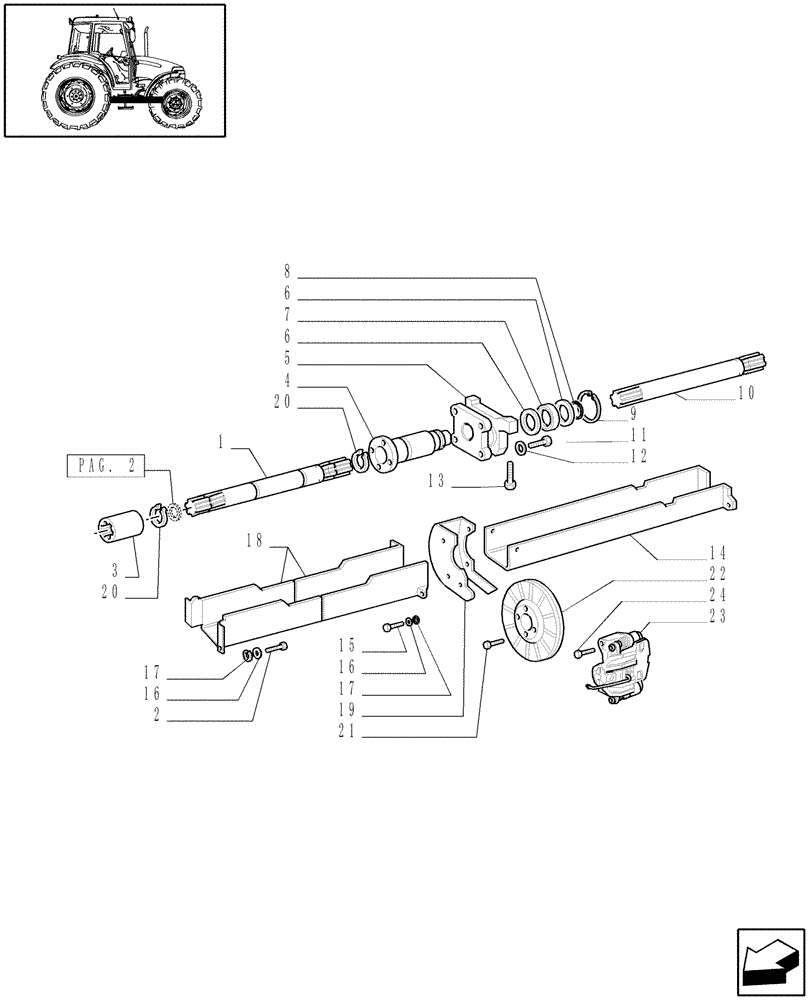

Запчасти Case IH JX60 (1.38.5/02[01]) - (VAR.115) 20X12 (40KM/H) TRANSMISSION W/FRONT BRAKE & LIMITED SLIP - 4WD PROPELLER SHAFT (04) - FRONT AXLE & STEERING

1

5149450

PROPELLER SHAFT

1шт.

2

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

3

5199243

SPLINED COUPLING

2шт.

4

5143487

SHAFT

1шт.

5

5161747

SUPPORT

, Serial Range: -C5629

1шт.

5

87595455

SUPPORT

, Start Serial: D5629

1шт.

6

5143488

RING

2шт.

7

24905120

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

1шт.

8

11068876

SNAP RING,M40, Ext

1шт.

9

11061376

SNAP RING,M68, Int

1шт.

10

5149571

PROPELLER SHAFT

1шт.

11

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

14274721

BOLT,Hex, M12 x 1.25 x 40mm

2шт.

14

44909076

SHIELD

1шт.

15

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

9шт.

17

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

9шт.

18

5161607

SHIELD

1шт.

19

5161781

SHIELD

, Serial Range: -C5629

1шт.

19

87595464

SHIELD

, Start Serial: D5629

1шт.

20

11067776

SNAP RING,M29, Ext

2шт.

21

14233034

LOCK BOLT,Hex, M10 x 1.25 x 16mm, Cl 10.9, Full Thd

5шт.

22

5161748

BRAKE DISC

1шт.

23

5161756

BRAKE CALIPER

, Serial Range: -C5629

1шт.

23

87590457

BRAKE CALIPER

, Start Serial: D5629

1шт.

24

14233034

LOCK BOLT,Hex, M10 x 1.25 x 16mm, Cl 10.9, Full Thd

5шт.
