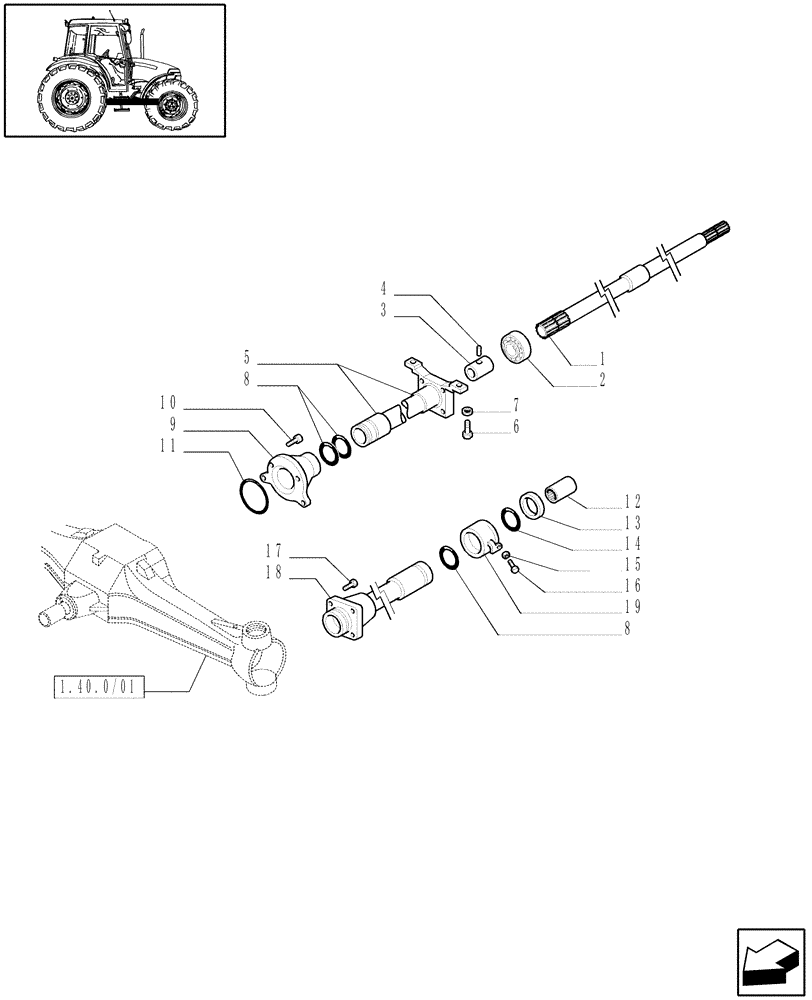

Запчасти Case IH JX60 (1.38.5/01[01]) - (VAR.449) 4WD WATER PROOF TRANSMISSION - SLEEVE AND SUPPORT (04) - FRONT AXLE & STEERING

1

5116691

PROPELLER SHAFT

1шт.

2

28996680

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.

3

5146936

SPLINED COUPLING

1шт.

4

13905470

COTTER PIN

1шт.

5

5150749

SHIELD

1шт.

6

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

7

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

8

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

3шт.

9

5149419

SLEEVE

1шт.

10

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

11

14472380

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

1шт.

12

5199243

SPLINED COUPLING

1шт.

13

5105989

SEAL,30mm ID x 50mm OD x 10mm Thk

1шт.

14

14460480

O-RING,2.612" ID x 2.818" OD x .103"

2шт.

15

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

16

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

17

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

18

5146945

SHIELD

1шт.

19

5146948

BUSHING

1шт.
