Запчасти Case IH JX60 (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL

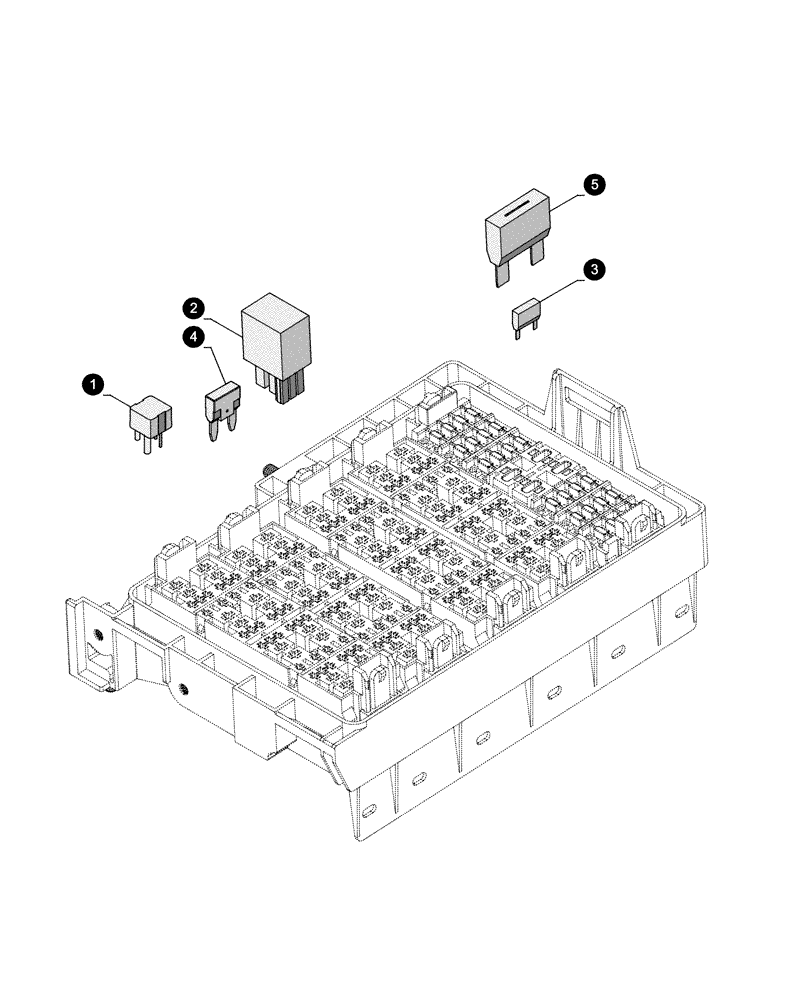

Схема запчастей Case IH JX60 - (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL
5
1
3
4
2

Артикул

Название

Примечание

Количество

1

5080366

RELAY,12V, 30A

12V, 30A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

2

5086059

RELAY

12V, 20A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR Models

1шт.

Valid with Var. 324

1шт.

2

5086057

DIODE

12V

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

2

84402860

RELAY

15A, Heat Control Circuit

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Valid with STD

1шт.

D7039 After Date 02 February 2009

1шт.

3

9811773

FUSE,10A, Micro, Red

10A, Microval, Red

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Valid with STD

1шт.

D6979 After Date 18 October 2010

1шт.

3

84090658

FUSE,Lt Blue, 15 Amp

10A, Microval, Red

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Valid with STD

1шт.

D6979 After Date 18 October 2010

1шт.

4

9804895

FUSE,20A, Micro, Yellow

20A, Minival, Yellow

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Valid with STD

1шт.

D6979 After Date 18 October 2010

1шт.

4

1-40-258-140

FUSE

40A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

4

86503942

FUSE,3A, Micro

3A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

4

84100299

FUSE,25A, Micro, Clear

25A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

4

A149804

FUSE

30A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

4

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Valid with STD

1шт.

C6660 Before Date 05 September 2009

1шт.

4

87693742

FUSE,5A

5A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR Models

1шт.

4

87717079

FUSE,7.5A

7.5A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Valid with STD

1шт.

D6979 After Date 18 October 2010

1шт.

4

9811773

FUSE,10A, Micro, Red

10A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

5

10404290

FUSE

80A

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

5

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with JX60-UPGRADE TRACTOR, JX70-UPGRADE TRACTOR, JX80-UPGRADE TRACTOR, JX90-UPGRADE TRACTOR, JX95-UPGRADE TRACTOR Models

1шт.

Выбрано товаров: 47
