(1.32.4[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS

Запчасти Case IH JX60 (1.32.4[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION

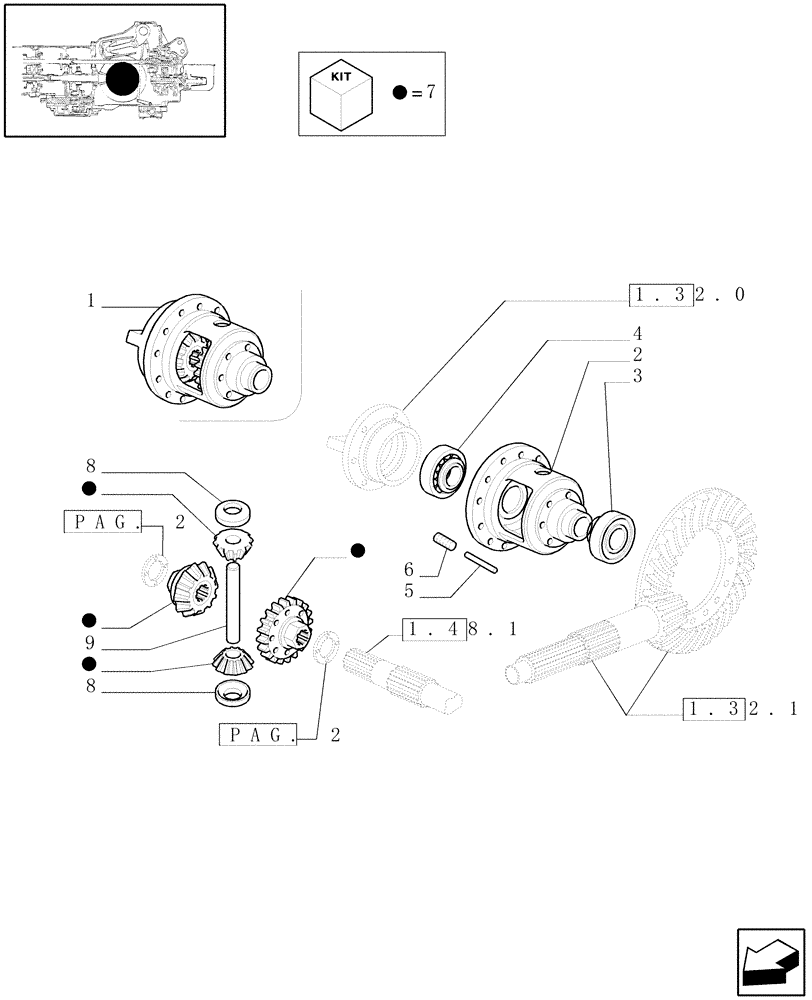

Схема запчастей Case IH JX60 - (1.32.4[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION
8
1
4
7
9
7
7
8
pag. 2
pag. 2
2
7
1.48.1
1.32.0
6
7
3
5
1.32.1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5106314

DIFF CARRIER & GEARS

1шт.

2

5174825

HOUSING

1шт.

3

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

1шт.

4

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

1шт.

5

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

87546041

GEAR SET

1шт.

8

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

9

5094840

PINION CARRIER

GEAR CARRIER

1шт.

Выбрано товаров: 9
