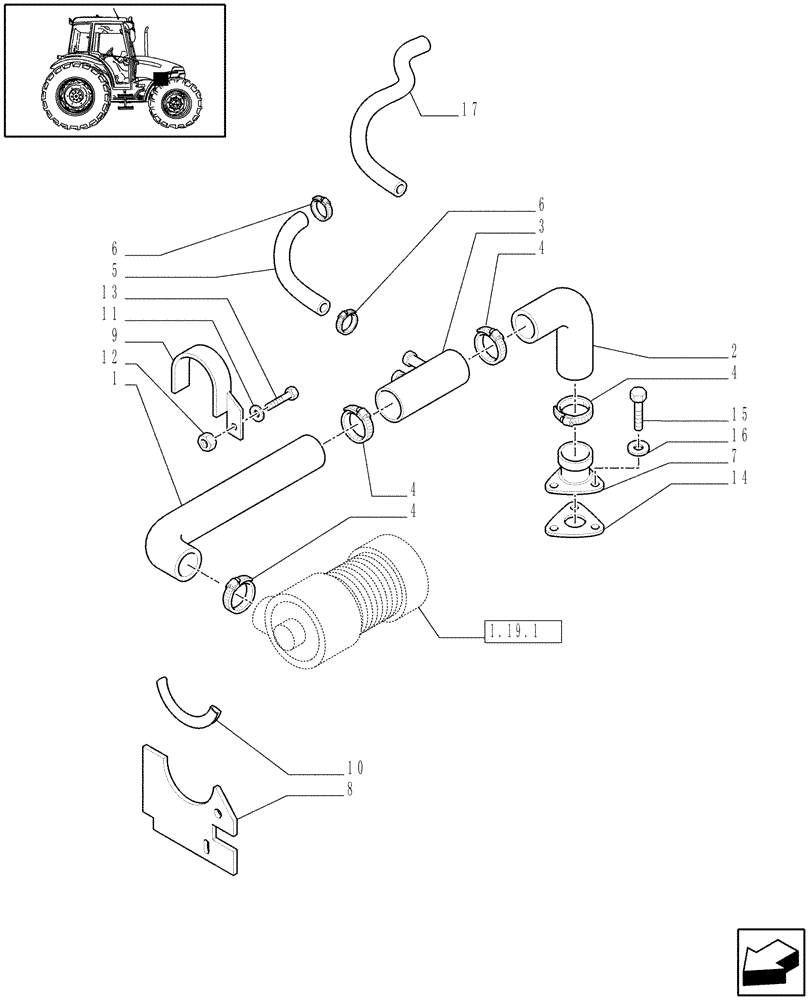

Запчасти Case IH JX60 (1.19.7/01) - (VAR.189) WET AIR CLEANER - AIR CLEANER PIPING (02) - ENGINE EQUIPMENT

1

5094849

SUPPORT

1шт.

2

5094505

ELBOW,60mm ID x 380mm L

1шт.

3

5094850

PIPE

JX60

1шт.

3

5094852

PIPE

JX80

1шт.

4

5085782

CLAMP

4шт.

5

5094791

HOSE,21.00 mm ID x 88.50 mm, SAE 100RG, SAE J517

JX80

1шт.

5

5096584

HOSE

JX60, Serial Range: -HJJ092507

1шт.

6

5085776

HOSE CLAMP

22 x 36

2шт.

7

5168120

FLANGE

JX80

1шт.

8

5094796

SUPPORT

1шт.

9

5094797

SUPPORT

1шт.

10

5107469

SEAL

1шт.

11

10571579

LOCK WASHER,M6

1шт.

12

15896211

NUT,M6, Cl 8

1шт.

13

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

14

98418533

GASKET,0.8mm Thk

JX80

1шт.

15

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

JX80

3шт.

16

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

JX80

3шт.

17

87576431

HOSE,21.00 mm ID x 260.00 mm, SAE 100R6

JX60, Start Serial: HJJ092508

1шт.
