Запчасти Case IH JX60 (1.19.1/01[01]) - (VAR.189) WET AIR CLEANER (02) - ENGINE EQUIPMENT

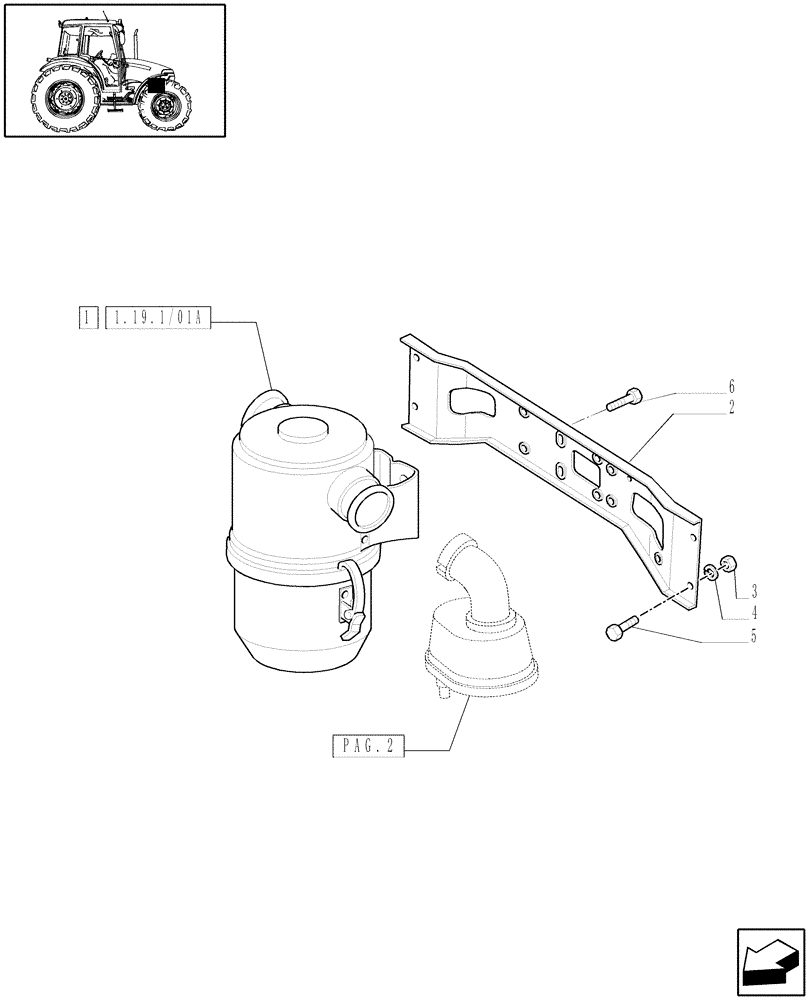

Схема запчастей Case IH JX60 - (1.19.1/01[01]) - (VAR.189) WET AIR CLEANER (02) - ENGINE EQUIPMENT
4
2
3
6
pag.2
1.19.1/01a
1
5

Артикул

Название

Примечание

Количество

1

5085490

OIL BATH AIR CLEANER

ASSY

1шт.

2

5094521

SUPPORT

1шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 6
