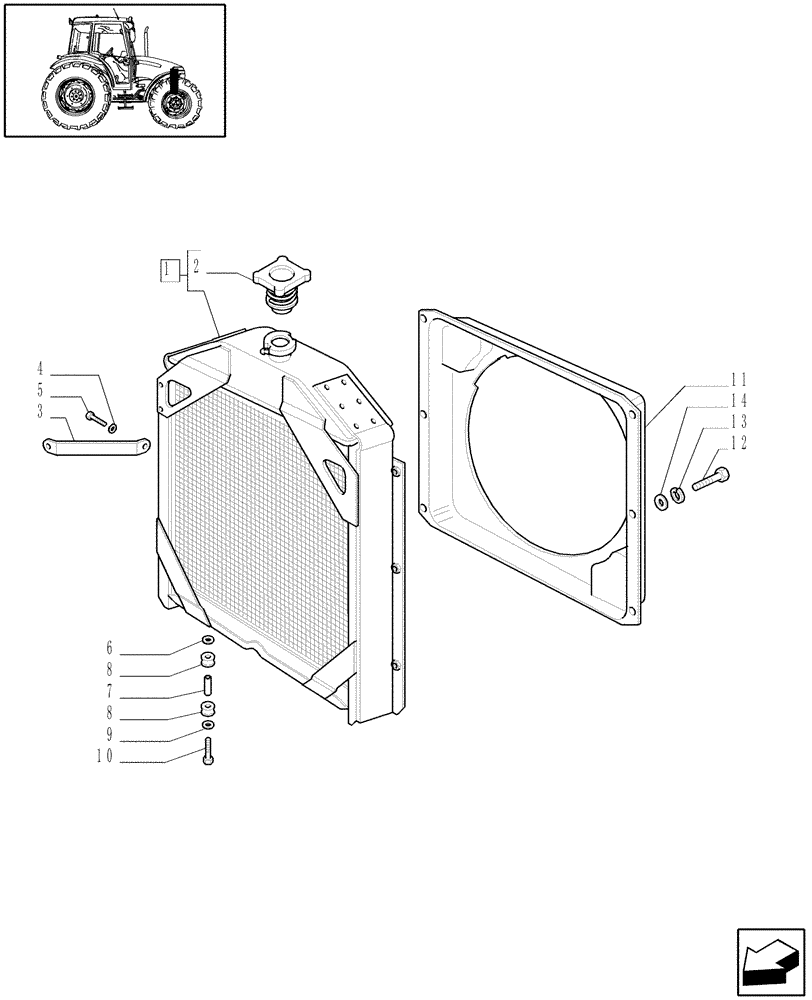

Запчасти Case IH JX60 (1.17.0[01]) - RADIATOR - CAP AND BRACKET (02) - ENGINE EQUIPMENT

1

5096599

RADIATOR

JX60, JX70

1шт.

2

83935905

RADIATOR CAP

1шт.

3

5153165

BRACKET

1шт.

4

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

5

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

7

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

8

5108225

RUBBER MOUNTING

4шт.

9

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

10

15971621

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

11

5153163

GUARD

1шт.

12

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

13

10571579

LOCK WASHER,M6

6шт.

14

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.
