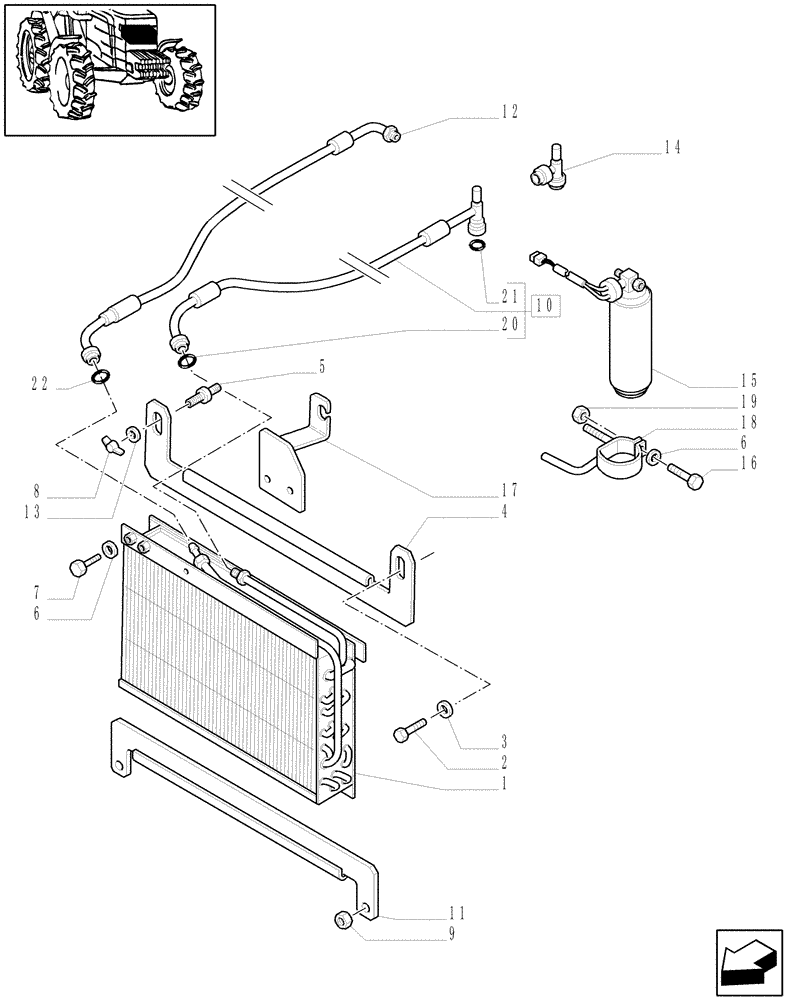

Запчасти Case IH JX60 (0.88.0[01]) - (VAR.641-958) AIR CONDITIONING UNIT - CONDENSER - C6847 (01) - ENGINE

1

84215855

CONDENSER

1шт.

2

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

10569474

LOCK WASHER,10.2mm ID x 16mm ID x 2.5mm Thk

M10

2шт.

4

5091884

BRACKET

Condenser, Upper

1шт.

5

5174191

SCREW

1шт.

6

12035670

LOCK WASHER

M6

4шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

8

10102004

WING NUT

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

5091890

HOSE

& Tube Assy, Serial Range: (Compressor-Condenser)

1шт.

11

5168628

BRACKET

Condenser, Lower, Serial Range: -C6047

1шт.

11

87471595

BRACKET

, Start Serial: D6047

1шт.

12

5095483

HOSE

& Tube Assy (Condenser to Dryer), Incl.22

1шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

14

5092979

TEE

1шт.

15

5165615

RECEIVER-DRYER

1шт.

16

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

17

5095375

SUPPORT

Condenser Retainer

1шт.

18

5093231

SUPPORT

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

20

14453083

O-RING

1шт.

21

14453283

O-RING,14mm ID x 1.78mm Width

1шт.

22

14452883

O-RING,7.65mm ID x 1.78mm Width

1шт.
