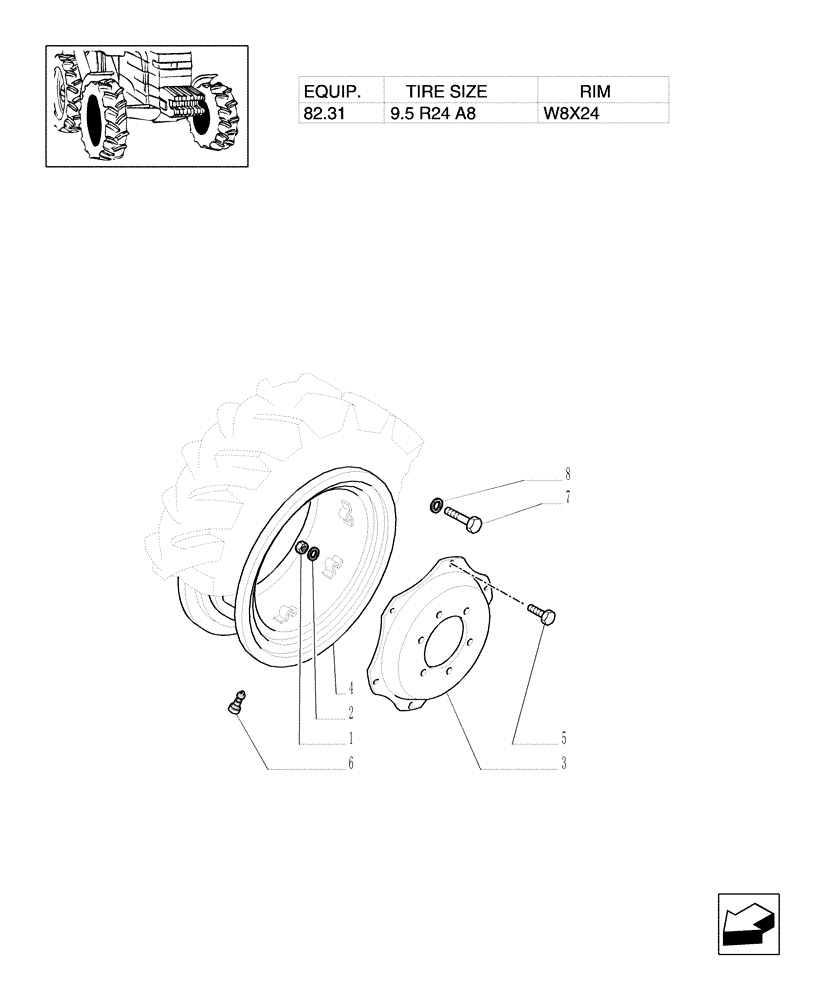

Запчасти Case IH JX55 (82.00[03]) - DRIVING WHEELS - 4WD (11) - WHEELS/TRACKS

1

10790524

NUT,M16 x 1.5

12шт.

2

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6

12шт.

3

5092240

WHEEL DISC

2шт.

4

5093879

RIM

W8 x 24

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

8шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

12шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

12шт.
