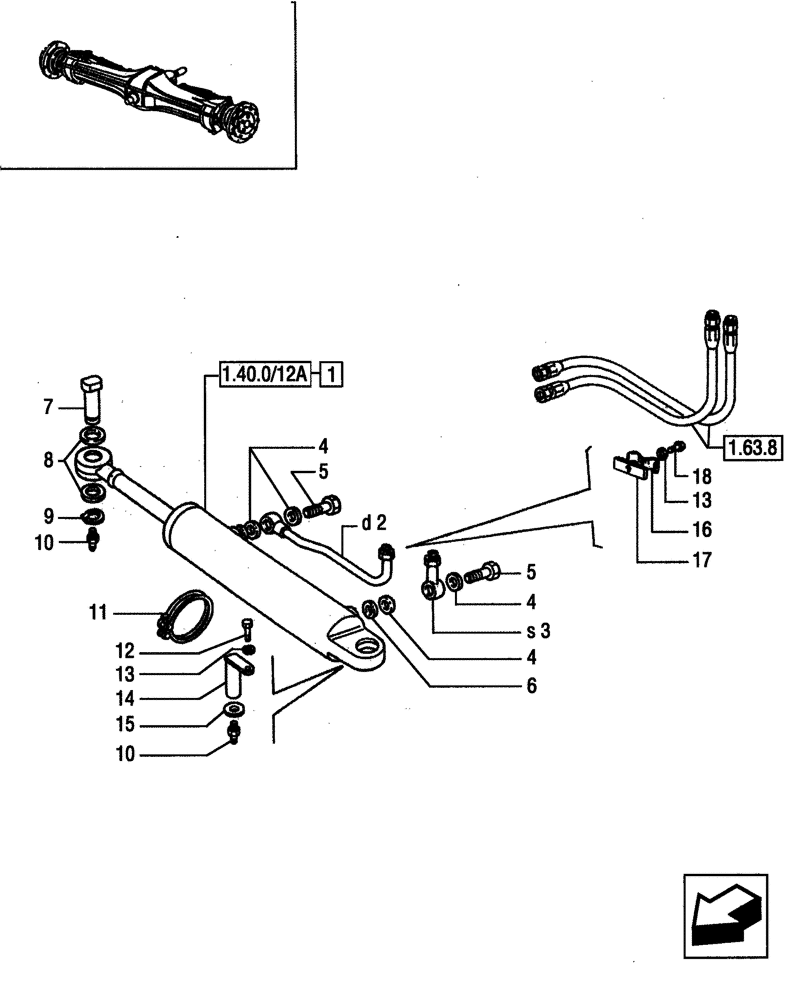

Запчасти Case IH JX55 (1.40.0/12[01]) - FRONT AXLE - POWER STEERING CYLINDER AND PIPES (04) - FRONT AXLE & STEERING

1

5189895

STEERING CYLINDER,Double Acting, 22mm Rod, 202mm Stroke

356MM

1шт.

2

5144505

HYD TUBE

1шт.

3

5144503

FITTING

1шт.

4

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

4шт.

5

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

6

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

2шт.

7

4987671

PIN,30mm OD x 61mm L

1шт.

8

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

9

11066876

SNAP RING,M20, Ext

1шт.

10

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

11

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

13

10516674

LOCK WASHER,M8

1шт.

14

4997489

PIN,19.99mm OD x 88mm L

1шт.

15

5100731

WASHER,20.5mm ID x 28mm OD x 10mm L

1шт.

16

4999554

CLAMP,2 Hoses

1шт.

17

5138294

SUPPORT

1шт.

18

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.
