(1.40.0/10[01]) - FRONT AXLE - HALF-SHAFTS AND RINGS

Запчасти Case IH JX55 (1.40.0/10[01]) - FRONT AXLE - HALF-SHAFTS AND RINGS (04) - FRONT AXLE & STEERING

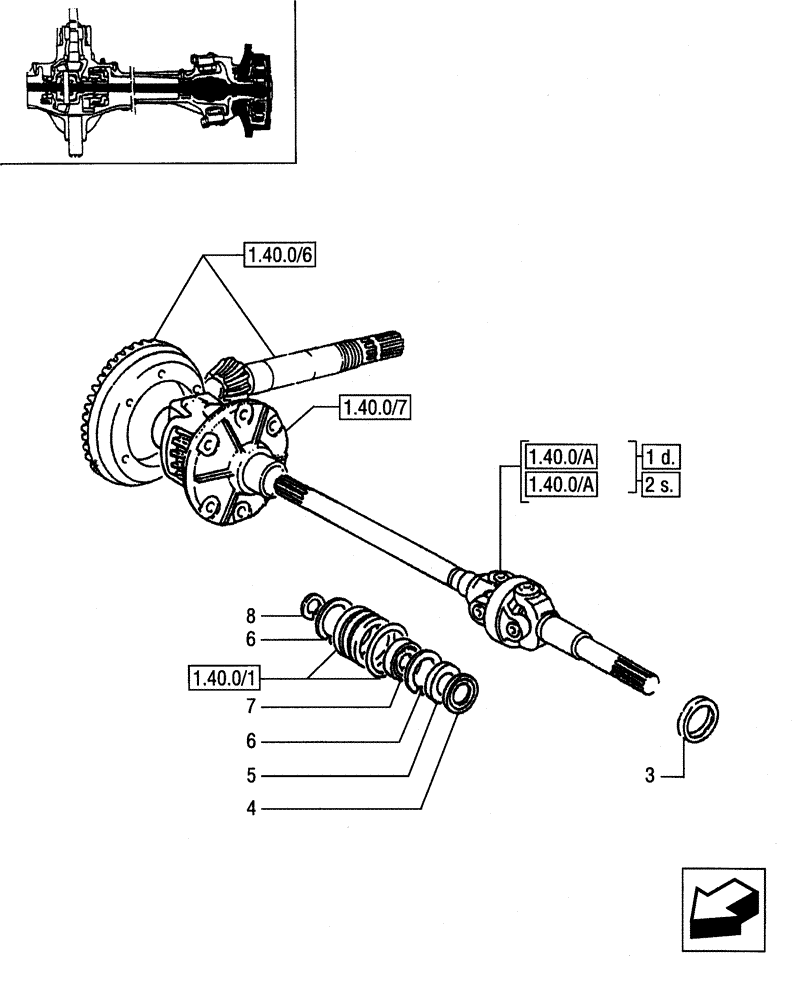

Схема запчастей Case IH JX55 - (1.40.0/10[01]) - FRONT AXLE - HALF-SHAFTS AND RINGS (04) - FRONT AXLE & STEERING
1.40.0/7
1.40.0/1
5
1.40.0/a 2s.
3
6
4
7
1.40.0/6
8
6
1.40.0/a 1d.
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5135091

AXLE-SHAFT, ARTICULA

LH

1шт.

2

5135092

AXLE-SHAFT, ARTICULA

RH

1шт.

3

5135386

SEAL,30mm ID x 42mm OD x 14mm Thk

2шт.

4

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

5

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

6

11060676

CIRCLIP,M55, Int

4шт.

7

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

8

80370003

CIRCLIP

Ext, M30

2шт.
