Запчасти Case IH JX55 (1.40.0/06[01]) - FRONT AXLE - BEVEL GEAR PAIR - SHIMS AND BEARINGS (04) - FRONT AXLE & STEERING

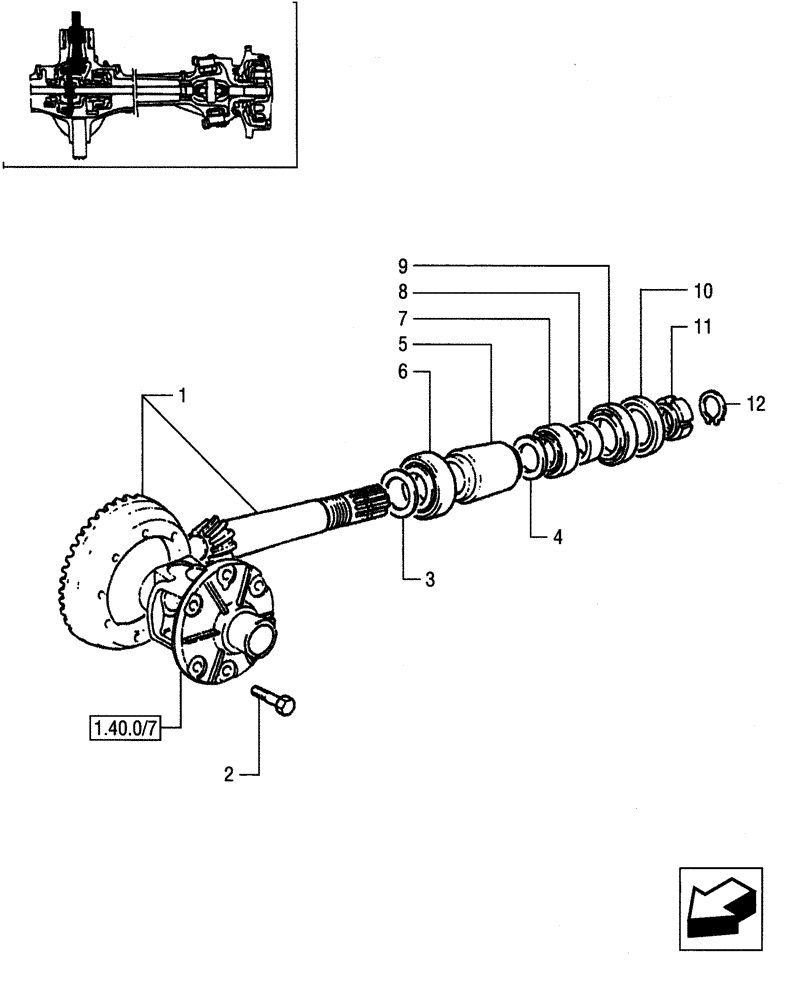

Схема запчастей Case IH JX55 - (1.40.0/06[01]) - FRONT AXLE - BEVEL GEAR PAIR - SHIMS AND BEARINGS (04) - FRONT AXLE & STEERING
10
8
2
7
9
3
5
11
6
12
1.40.0/7
4
1

Артикул

Название

Примечание

Количество

1

5119221

BEVEL GEAR

(9/38), Ring & Pinion

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

3

4998742

SHIM,2.5mm Thk

1шт.

3

4998743

SHIM,2.6mm Thk

1шт.

3

4998744

SHIM,2.7mm Thk

1шт.

3

4998745

SHIM,2.8mm Thk

1шт.

3

4998746

SHIM,2.9mm Thk

1шт.

3

7888009

SHIM,0.5mm Thk

1шт.

4

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

4

4997457

SHIM,35.1mm ID x 43mm OD x 2.6mm Thk

1шт.

4

4997458

SHIM,35.1mm ID x 43mm OD x 2.7mm Thk

1шт.

4

4997459

SHIM,35.1mm ID x 43mm OD x 2.8mm Thk

1шт.

4

4997460

SHIM,35.1mm ID x 43mm OD x 2.9mm Thk

1шт.

4

5129151

SHIM,35.1mm ID x 43mm OD x 2.55mm Thk

1шт.

4

5129152

SHIM,35.1mm ID x 43mm OD x 2.65mm Thk

1шт.

4

5129153

SHIM,35.1mm ID x 43mm OD x 2.75mm Thk

1шт.

4

5129154

SHIM,35.1mm ID x 43mm OD x 2.85mm Thk

1шт.

4

5129155

SHIM,35.1mm ID x 43mm OD x 2.95mm Thk

1шт.

4

7888010

SHIM,35.1mm ID x 43mm OD x 0.5mm Thk

1шт.

5

4997452

SPACER

1шт.

6

28042230

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

1шт.

7

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25

1шт.

8

4997464

SEALING RING,35.1mm ID x 45mm OD x 20mm Thk

SEALRING

1шт.

9

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

10

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

11

4997450

RING NUT

1шт.

12

11067776

SNAP RING,M29, Ext

1шт.

Выбрано товаров: 27
